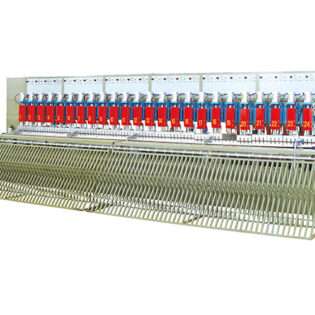

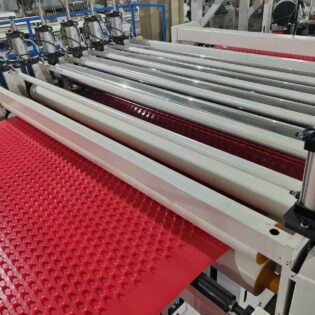

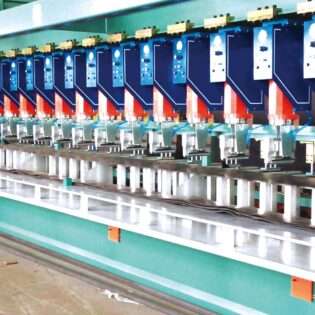

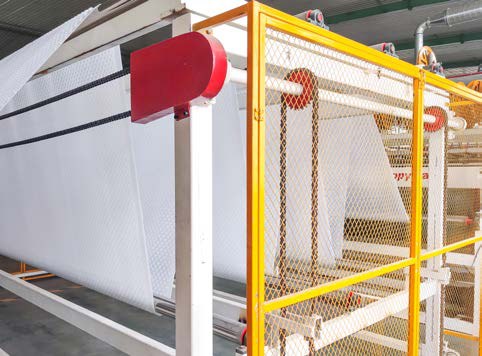

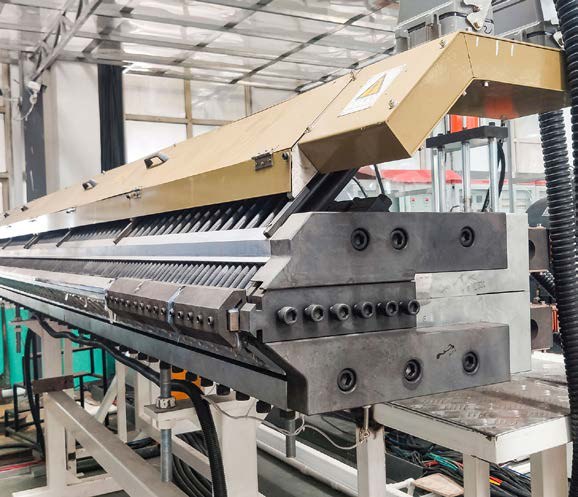

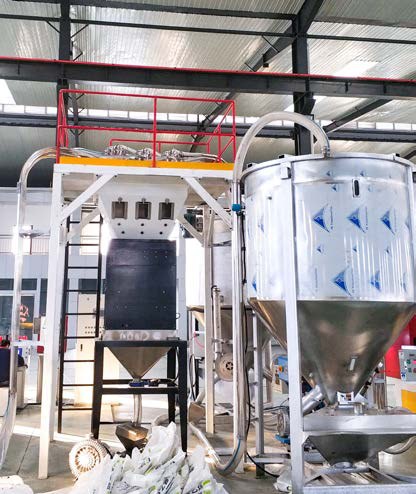

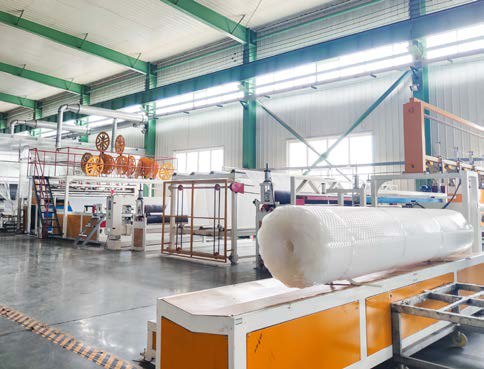

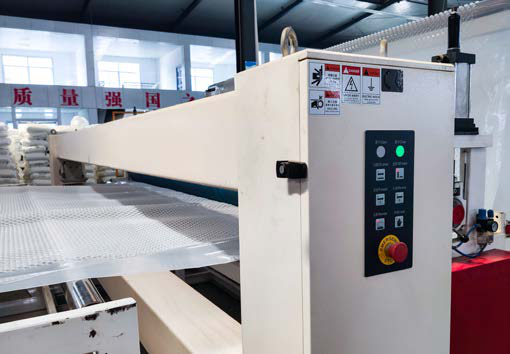

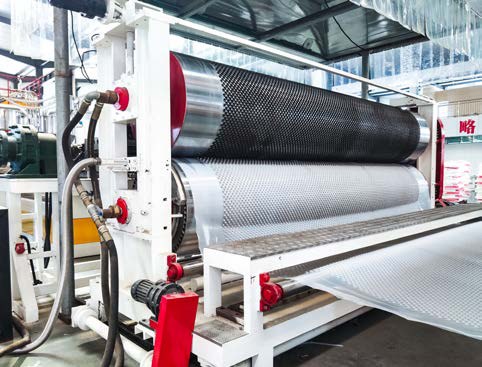

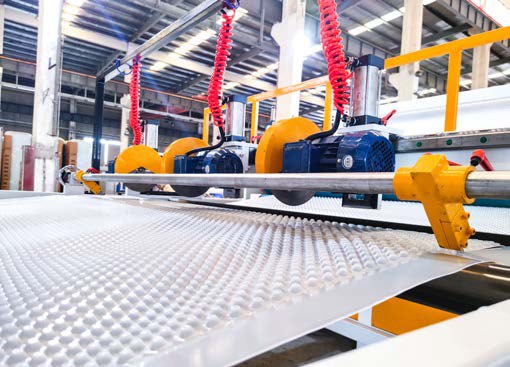

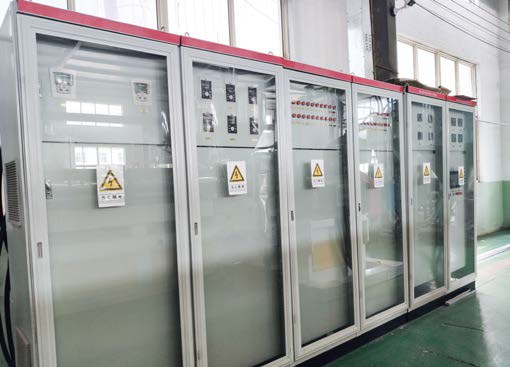

Optional Parts for Full-automatic Controlled Line

1

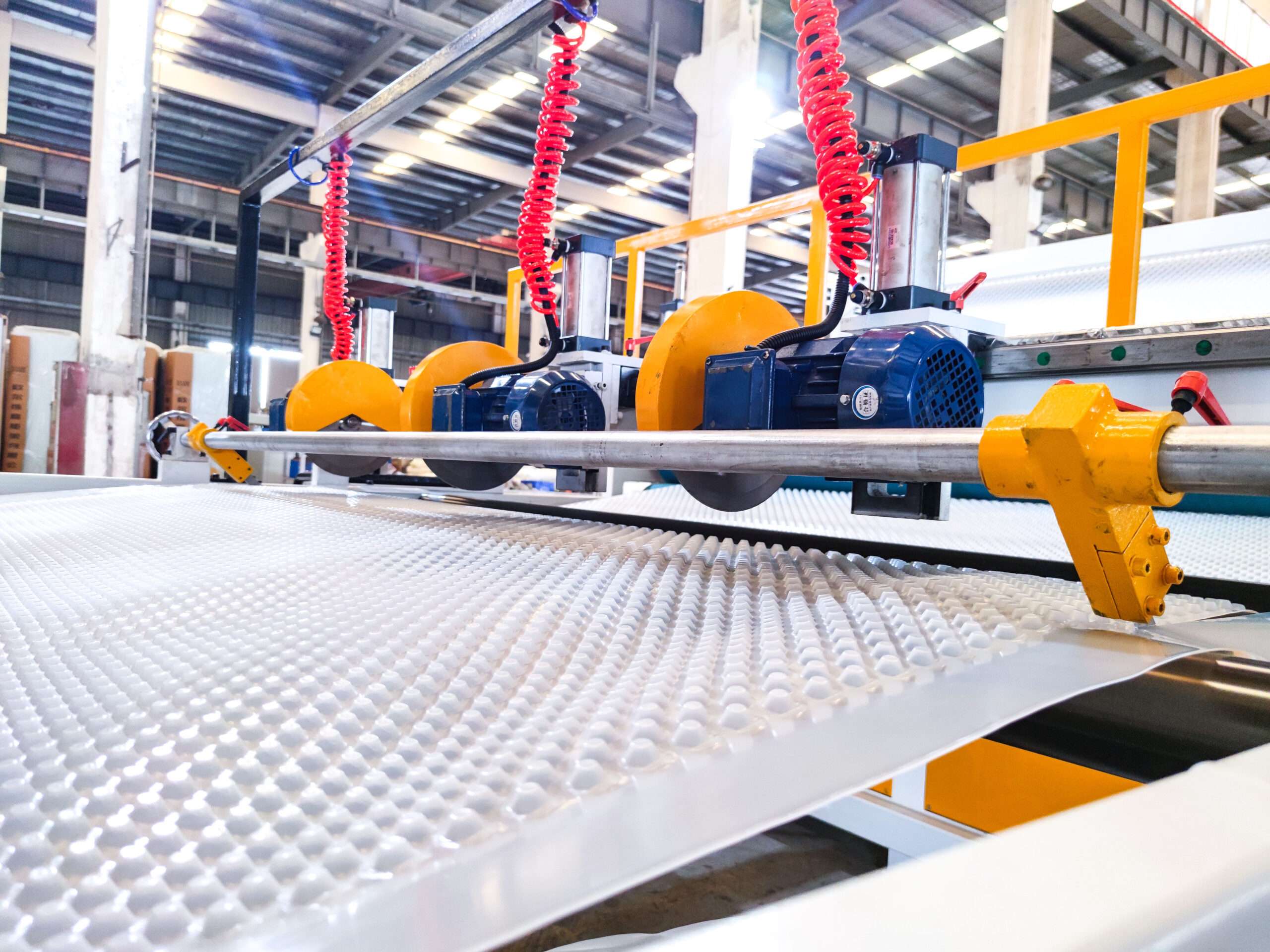

06-2
02-2

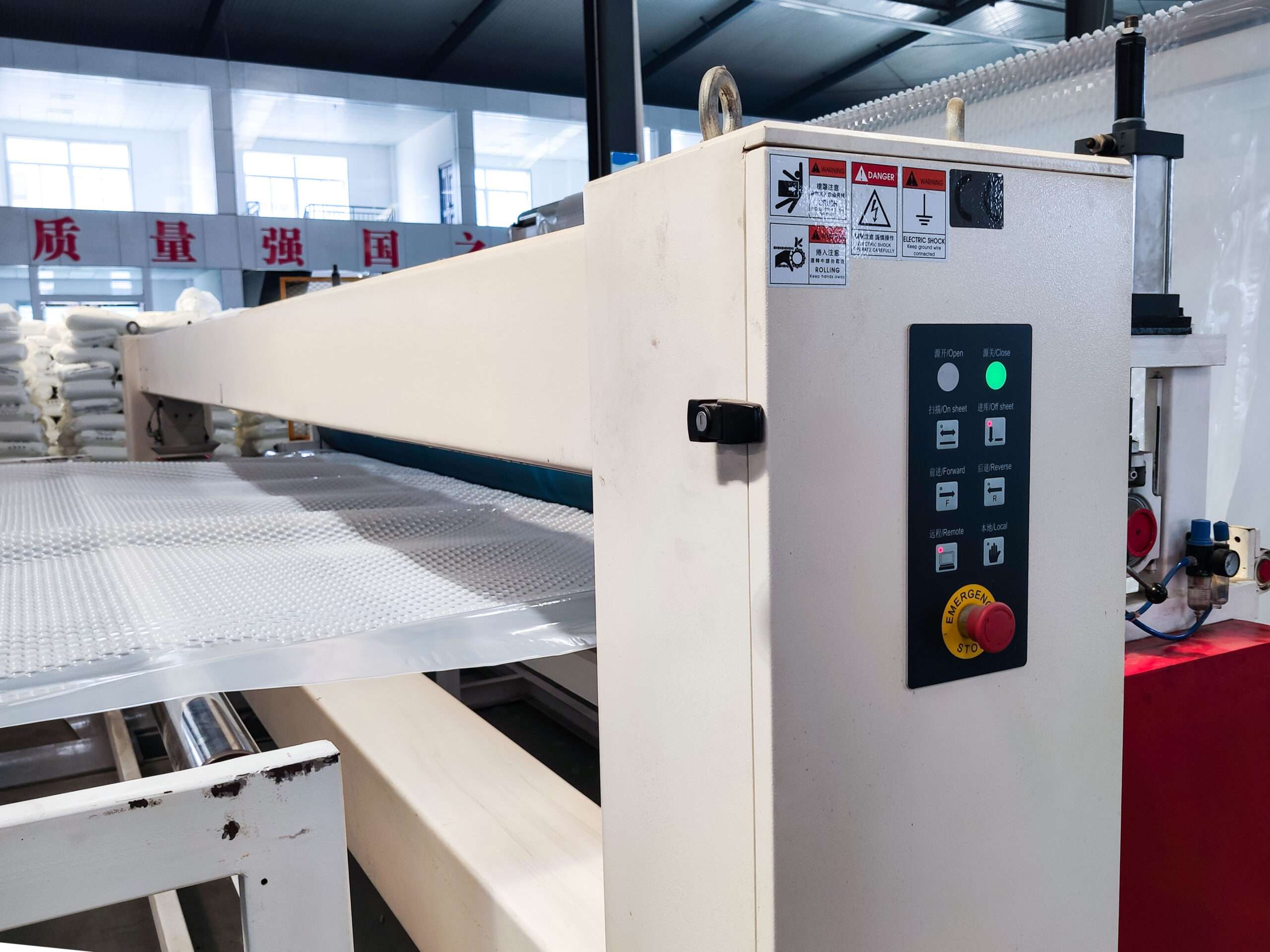

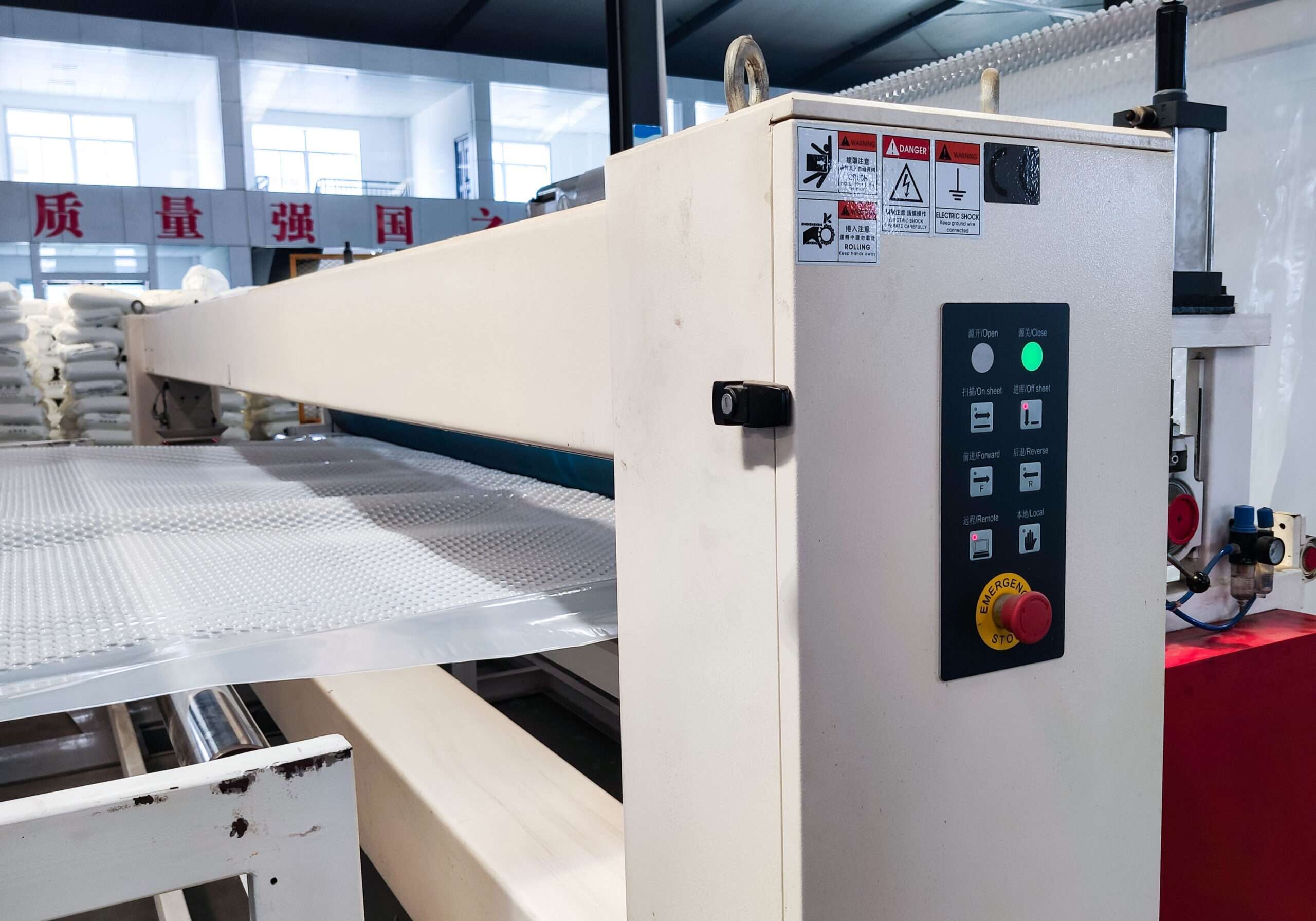

04-2

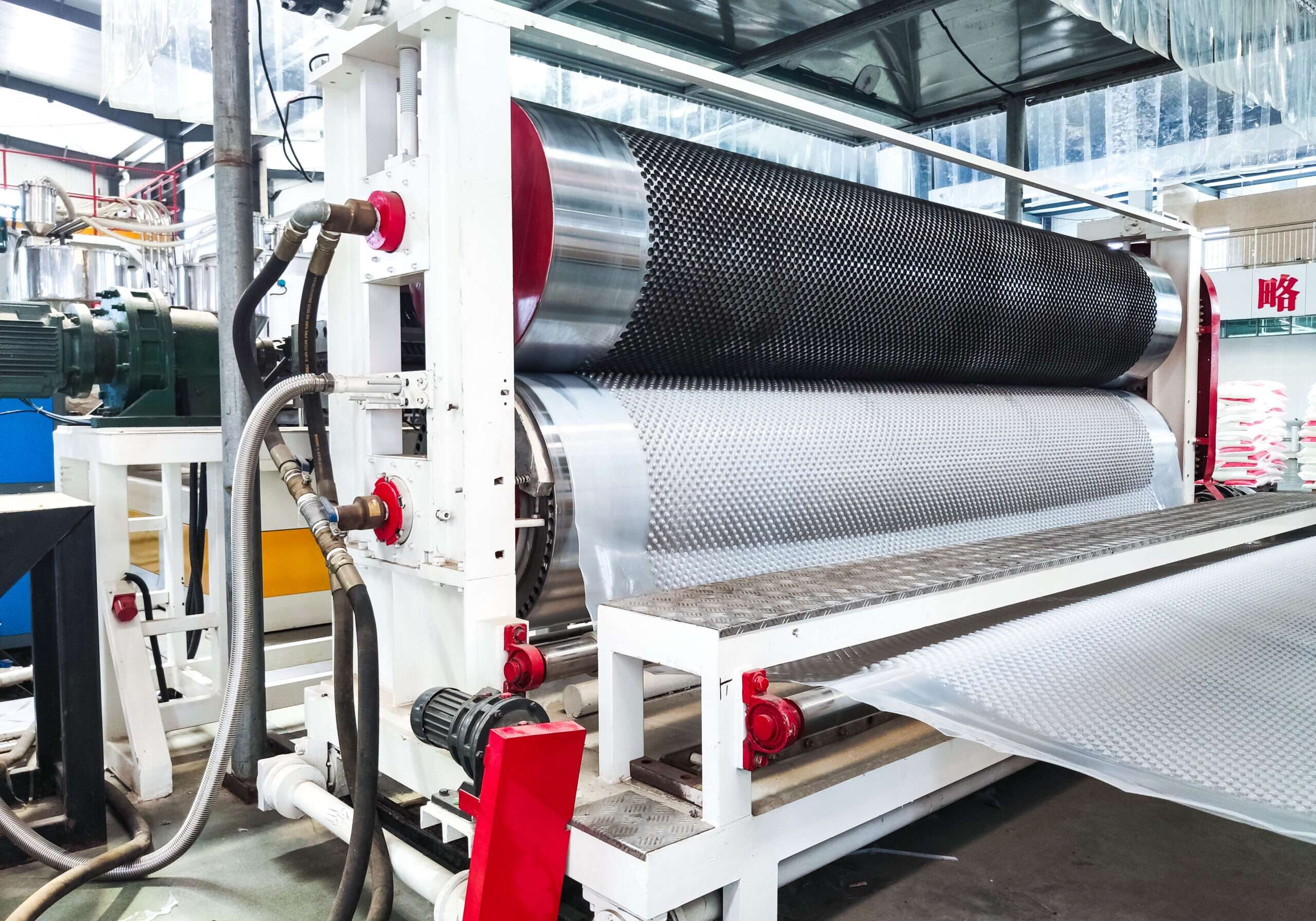

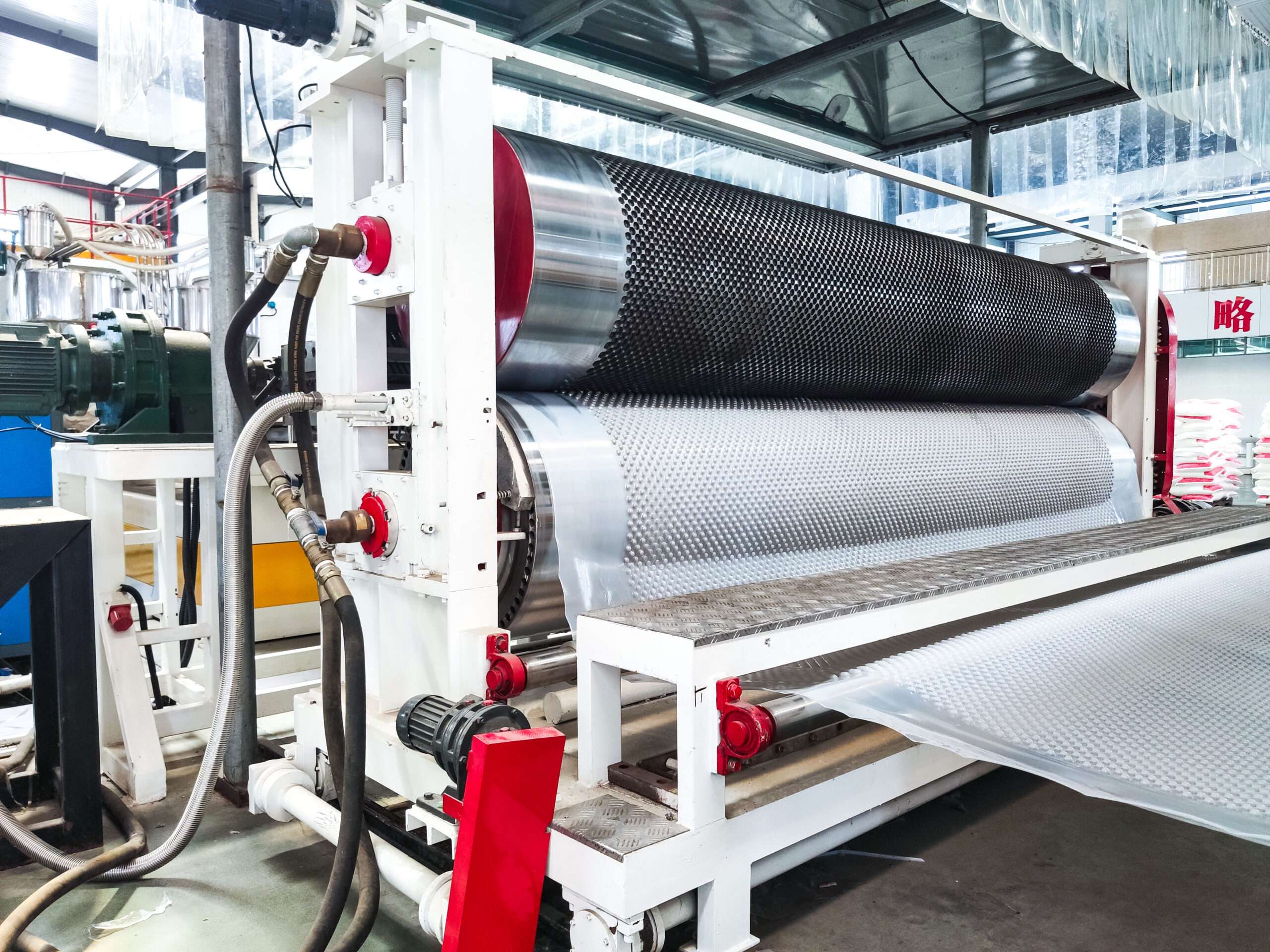

03-2

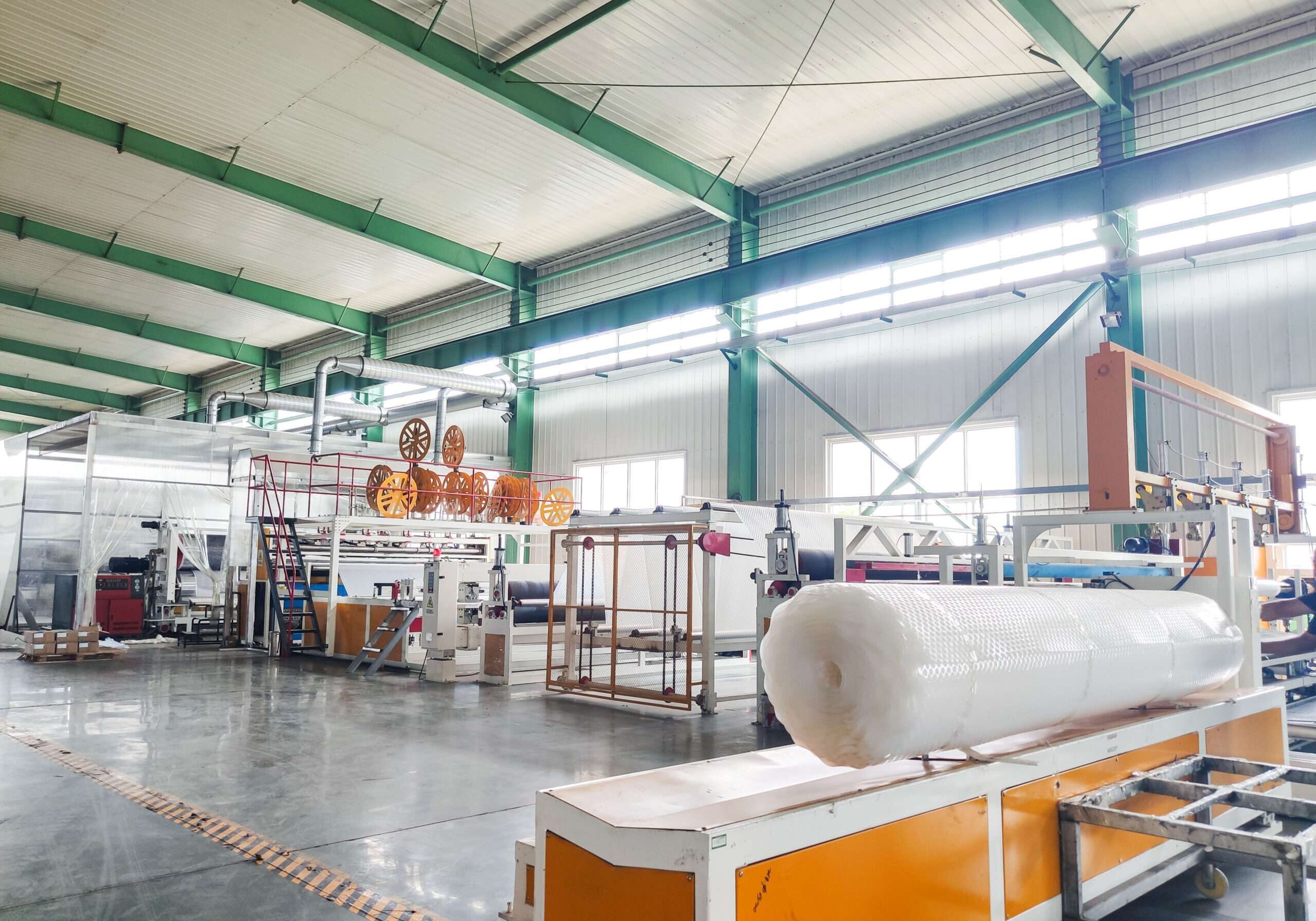

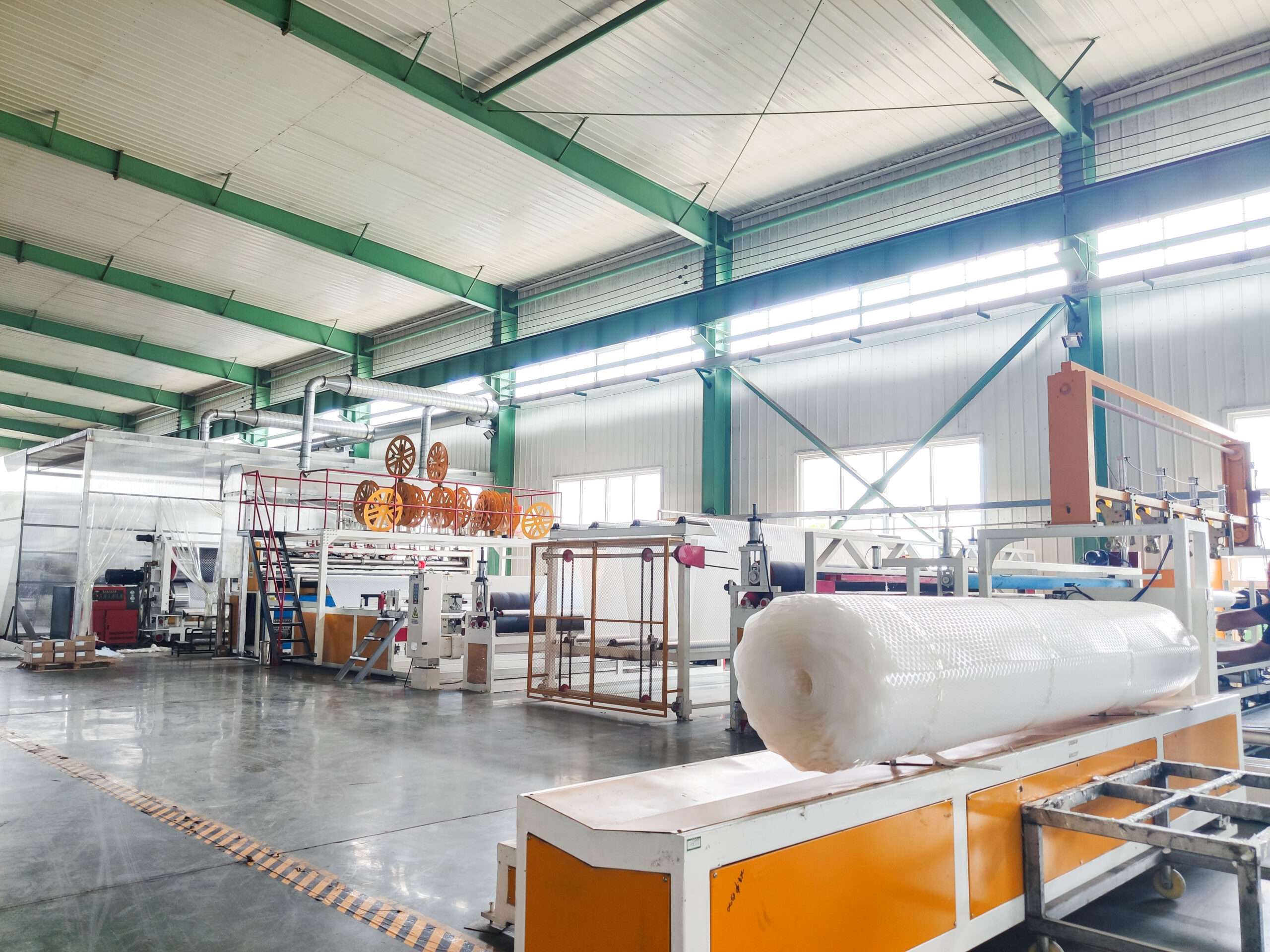

08-2

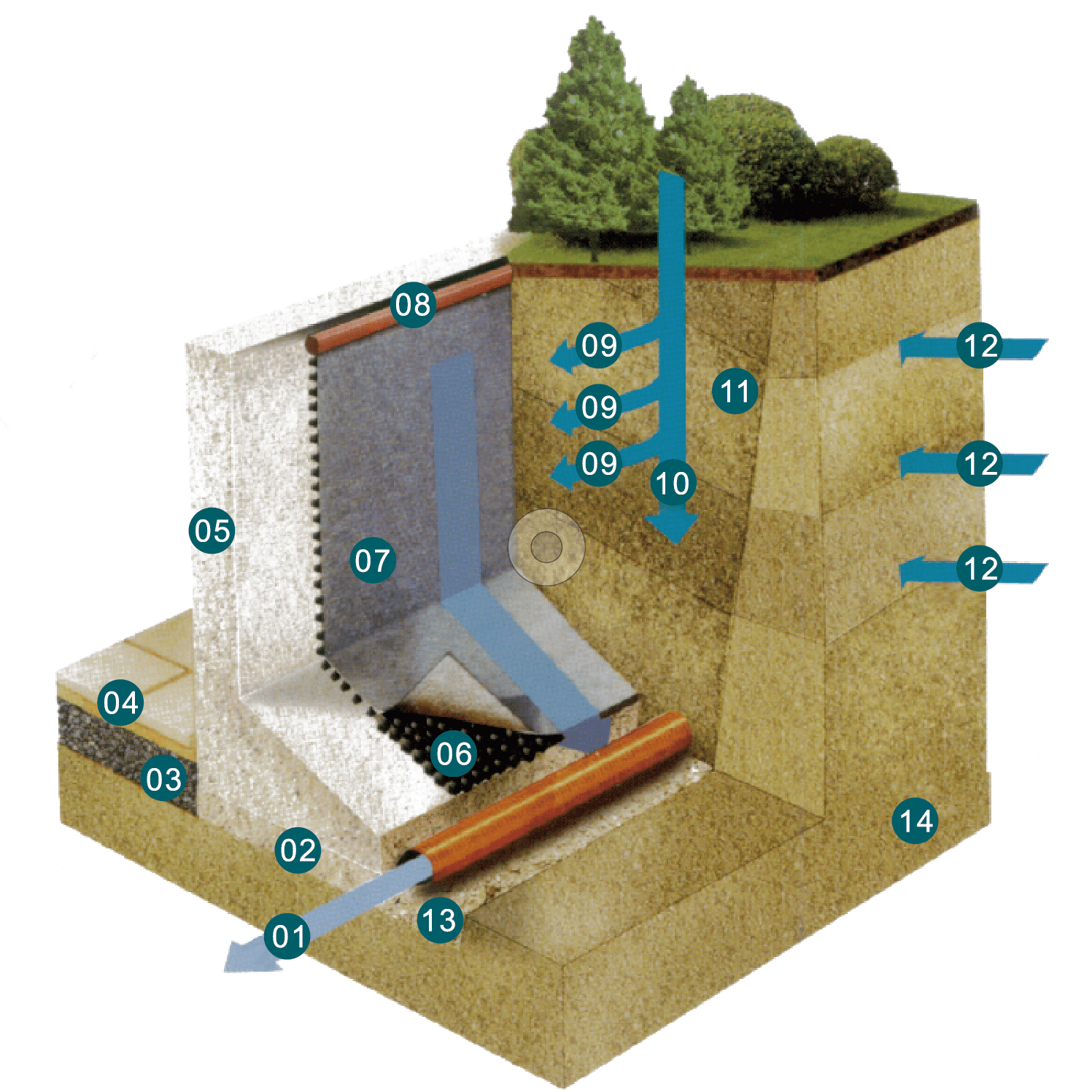

Basement waterproofing and drainage protecting system

RCQG30L]@13@$V]OP9$B~66
  1. Aqueduct
  2. Concrete bottoming
  3. Coarse grading layer
  4. Fine grading layer
  5. Retaining wall(outer wall)
  6. HDPE Drainage Panel
  7. Filtering layer
  8. Batten lin-end
  9. Side stream osmosis water of earth's surface
  10. Vertical osmosis water of earth's surface
  11. Backfilled soil layer(layering backfilled)
  12. Floating and flowing water in rock stratum
  13. Grading filtering layer
  14. Original soil layer

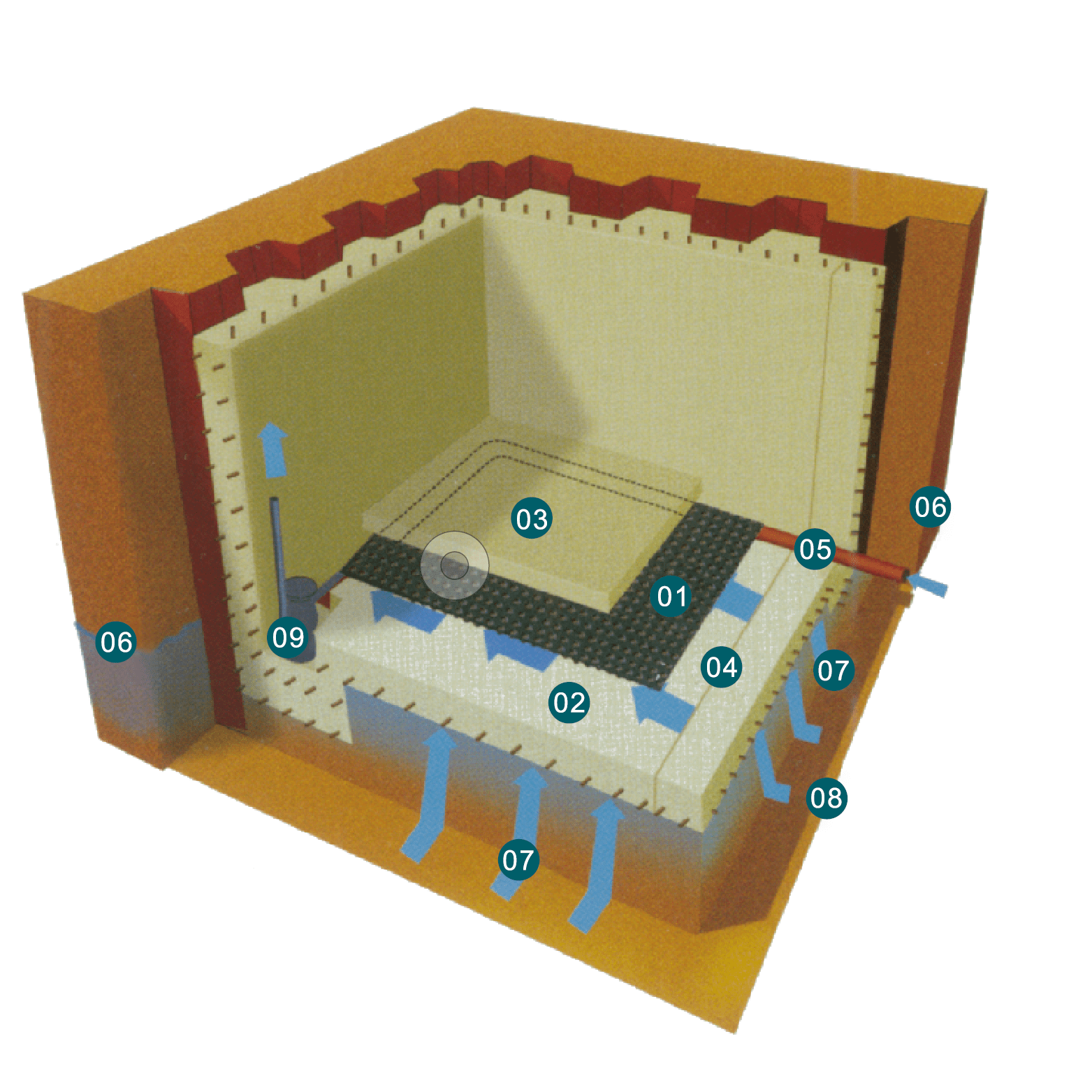

Indoor bottom plate of underground construction

~M2TX)`NX5{X)R0IYPH7NBI
  1. HDPE Drainage Panel
  2. Foundation laminate-banked
  3. Indoor ground reinforced concrete
  4. Expansive joint
  5. Drainage pipeline
  6. Temporal underground water level
  7. Temporal stream
  8. Bottom layer of nature soil
  9. Well pump

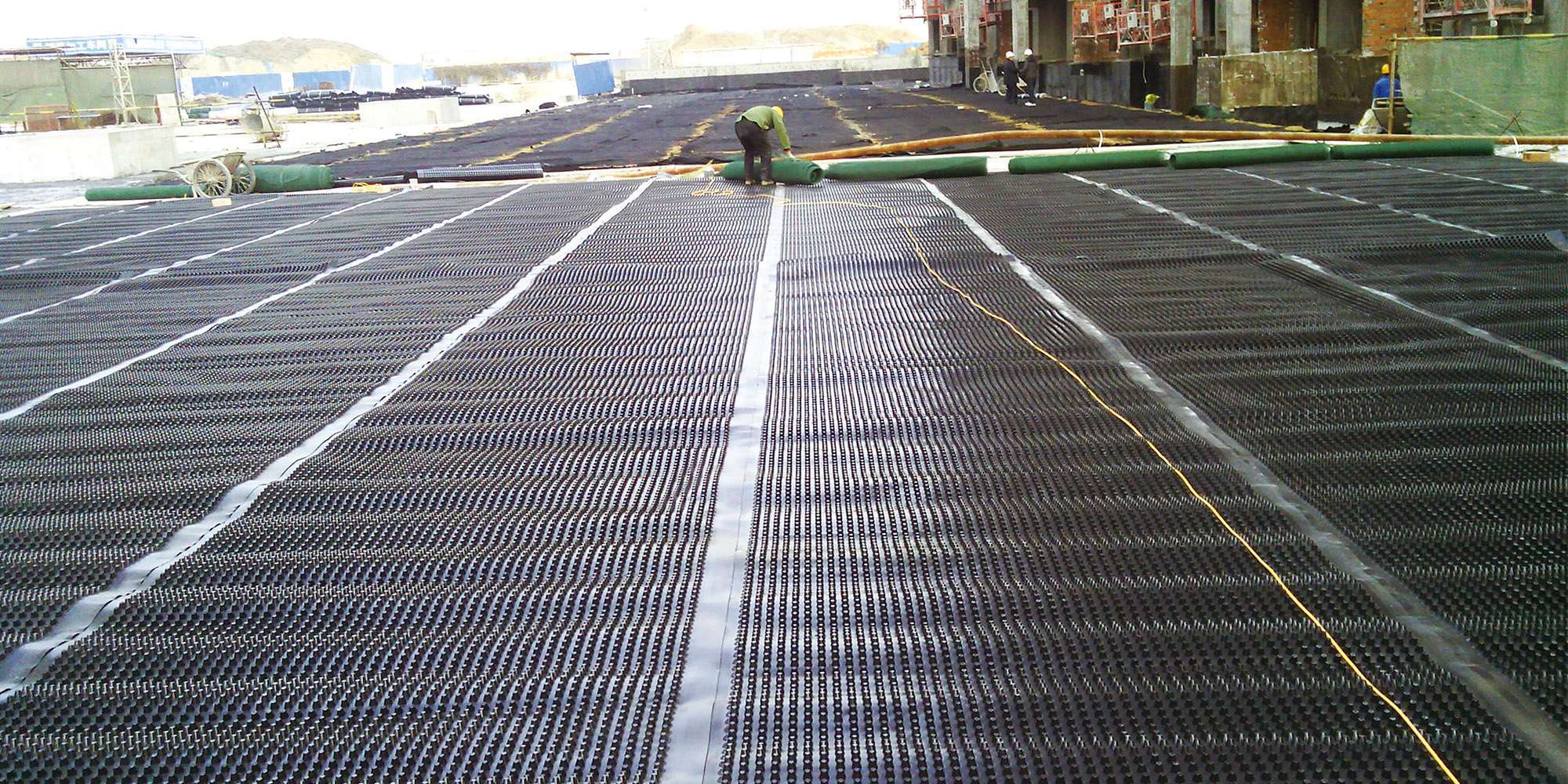

Application

12443123
54

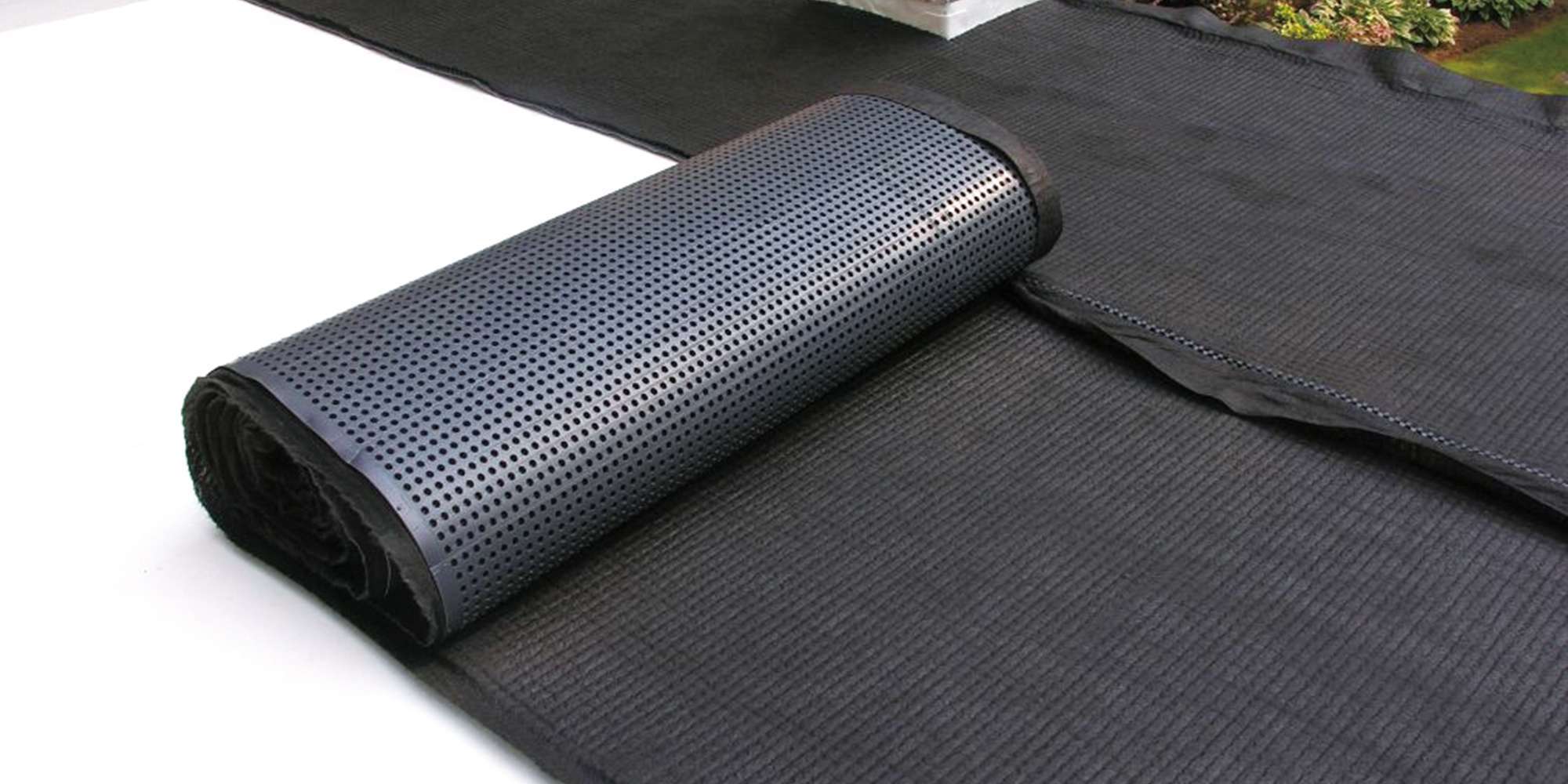

124431223
56
  • Landscape engineering
    Underground garage roof plant, green roof, football field, golf course, outdoor bathing place, plant in the salt and alkali place, etc.
  • Constructional engineering
    Auti-seepage of floor layer in the underground, anti-seepage for building foundation of superstructure sub layer, basement interiors and exteriors layer.
  • Traffic engineering
    Tunnel, highway, railroad bed, dam, revetment drainage.
  •  Municipal engineering
    Metro, road bed, landfill.
  •  Decoration project
    Moistureproof, sound insulation, damping and threading.

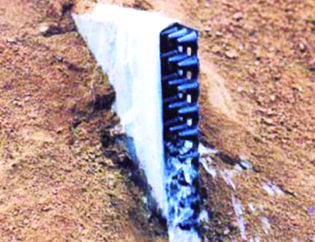

  • Punched holes and laminated with geotextile
    The Fabric permits ground water to permeate, yet prevents the adjacent soil from washing through the core.
