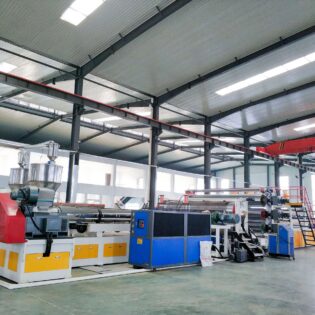

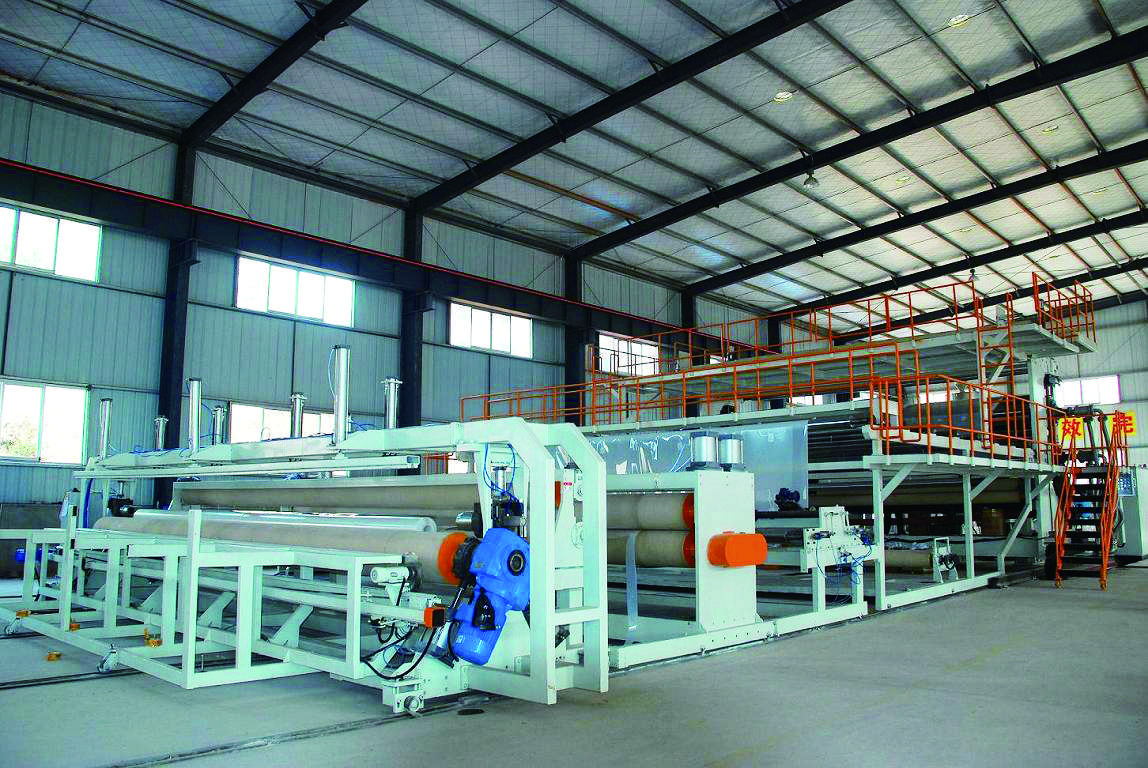

Plastic Geomembrane Production Line

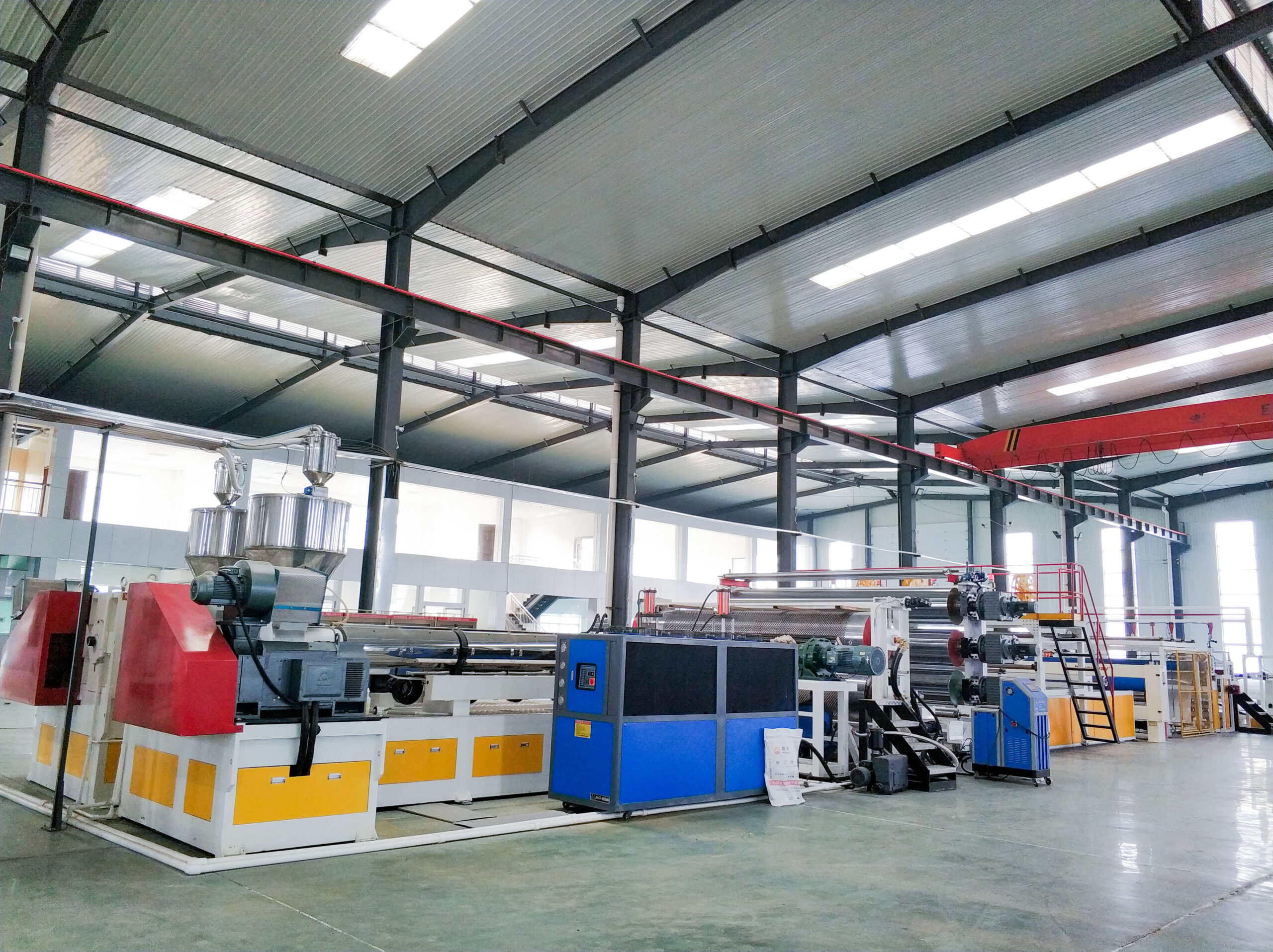

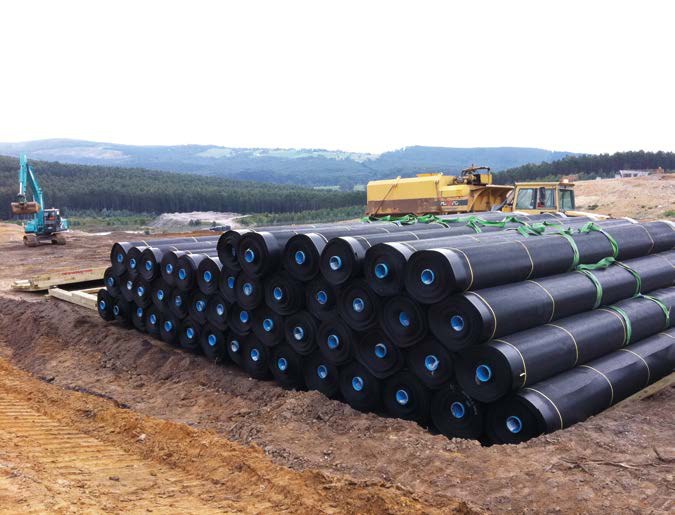

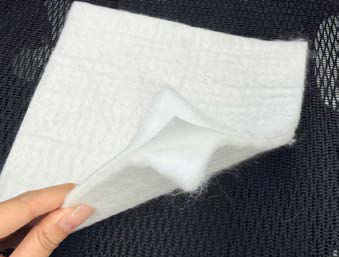

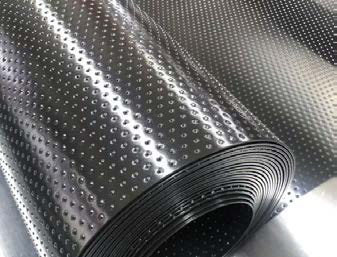

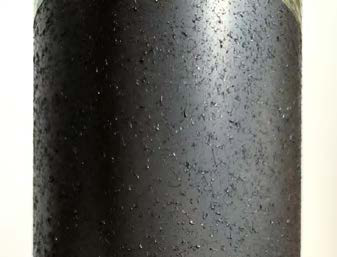

Junsheng geomembrane production line can produce the plastic geomembrane with thickness from 0.2 to 3mm and width of 4000 to 8000mm, the geomembrane can be monolayer, multilayer, both side smooth or embossing surface and laminated with non-woven fabric, the thickness of the geomembrane is uniform.
Key Features
Product Description
Junsheng geomembrane production line can produce the plastic geomembrane with thickness from 0.2 to 3mm and width of 4000 to 8000mm, the geomembrane can be monolayer, multilayer, both side smooth or embossing surface and laminated with non-woven fabric, the thickness of the geomembrane is uniform.

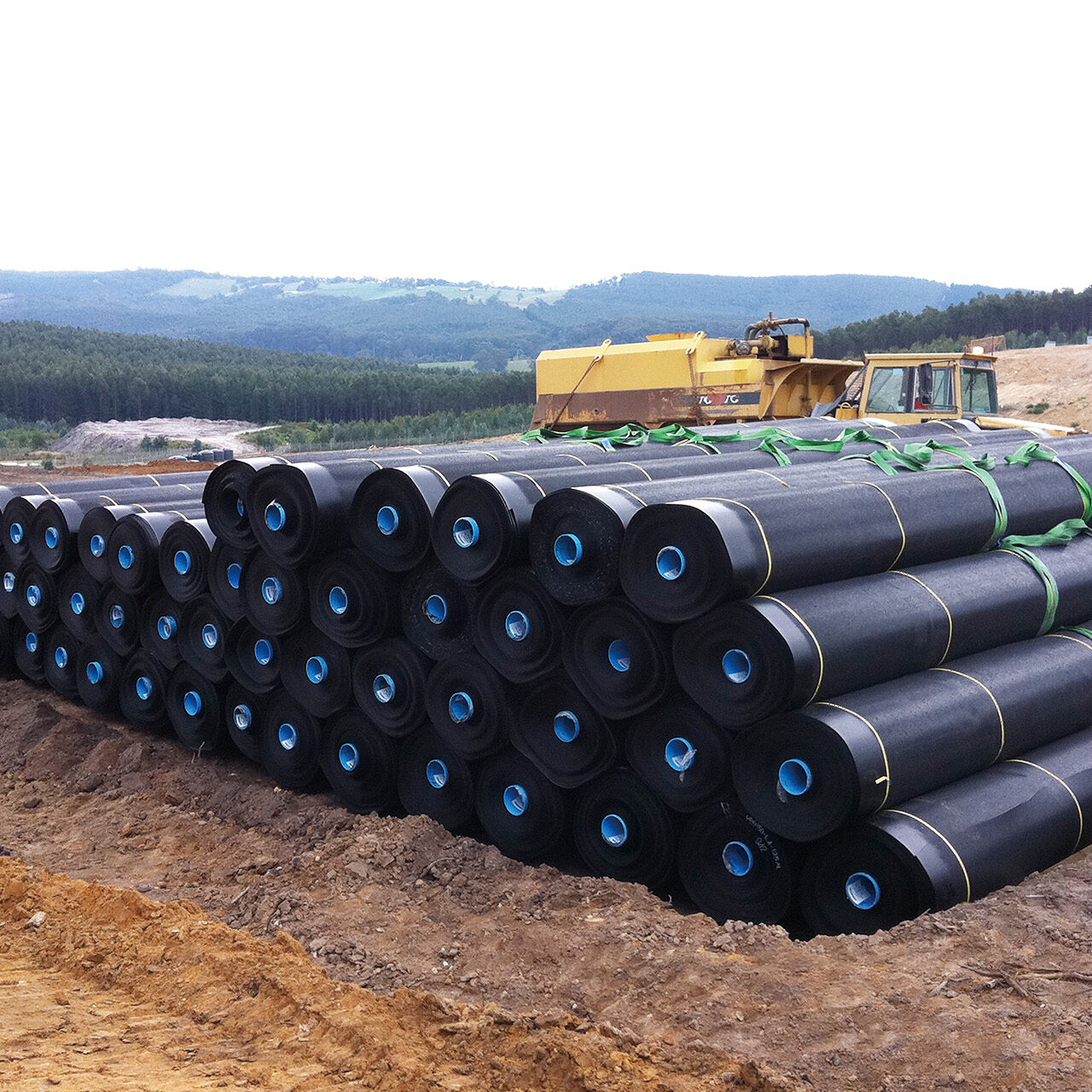

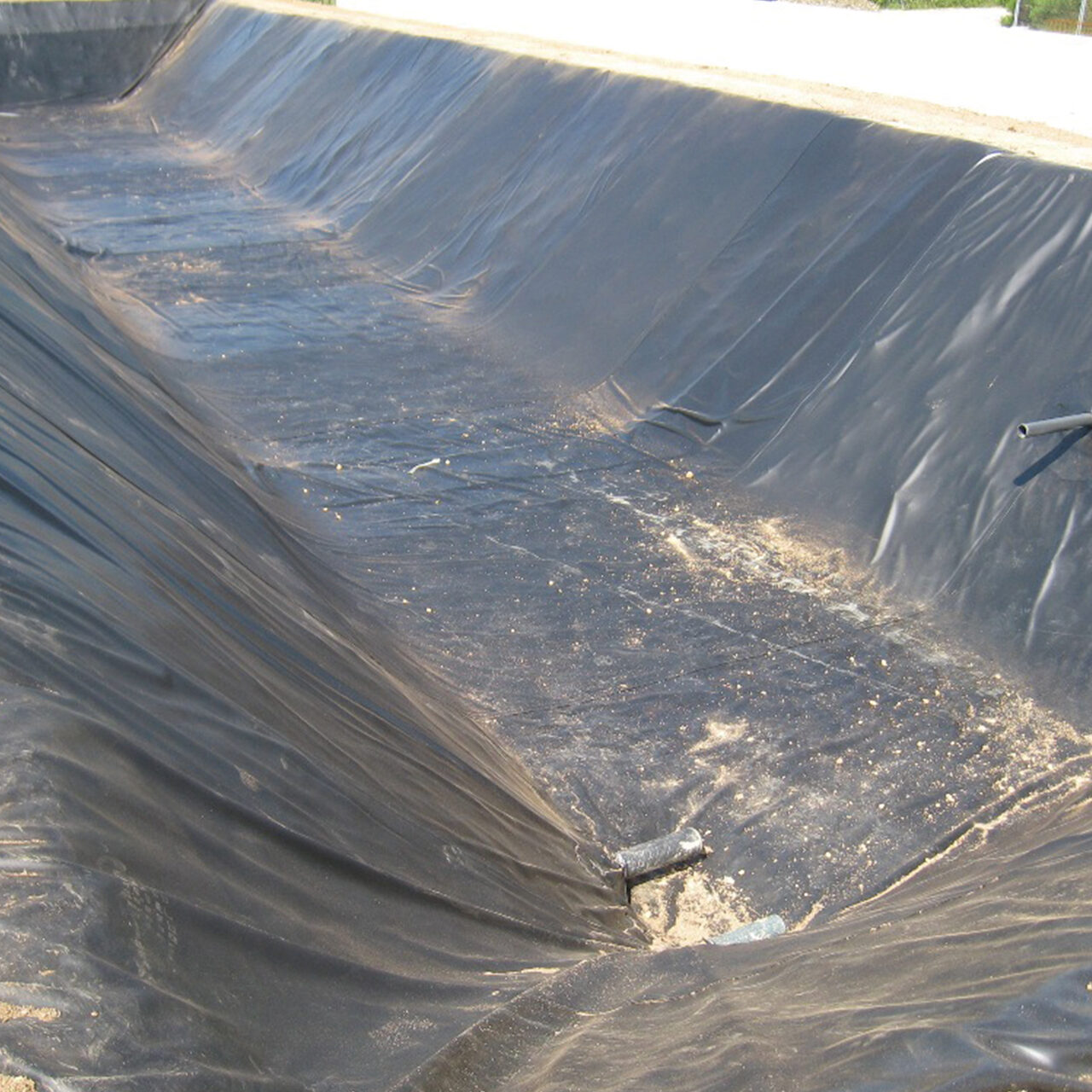

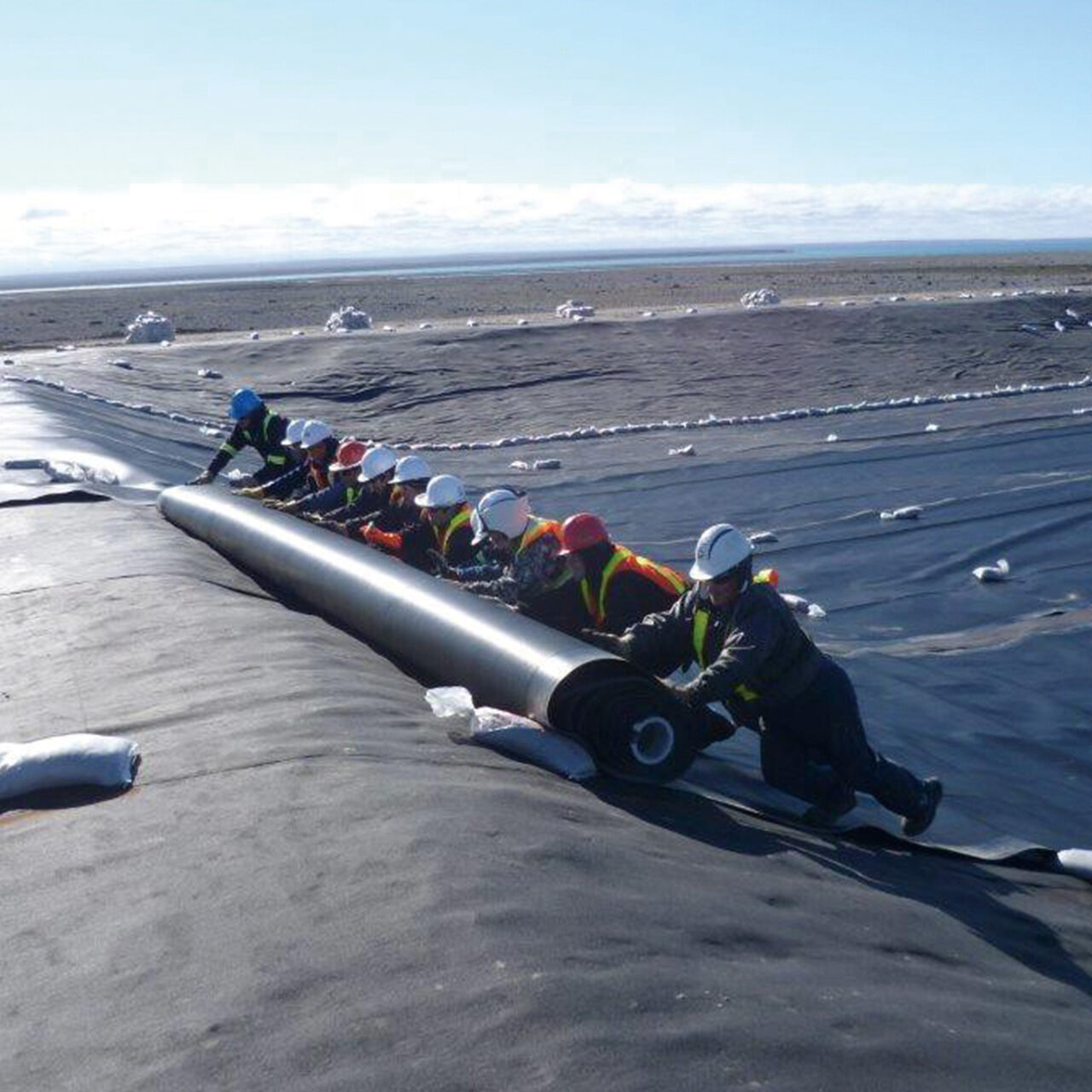

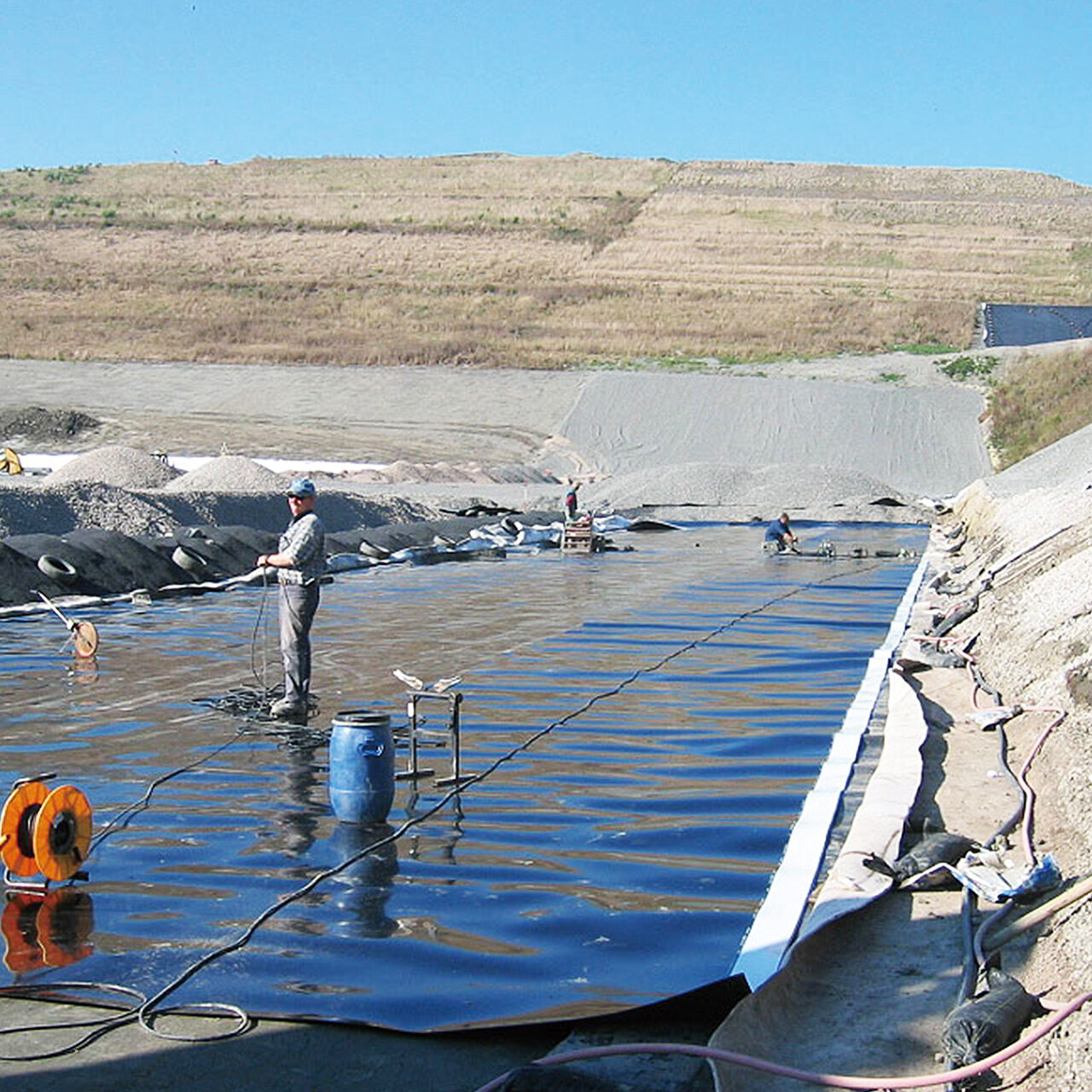

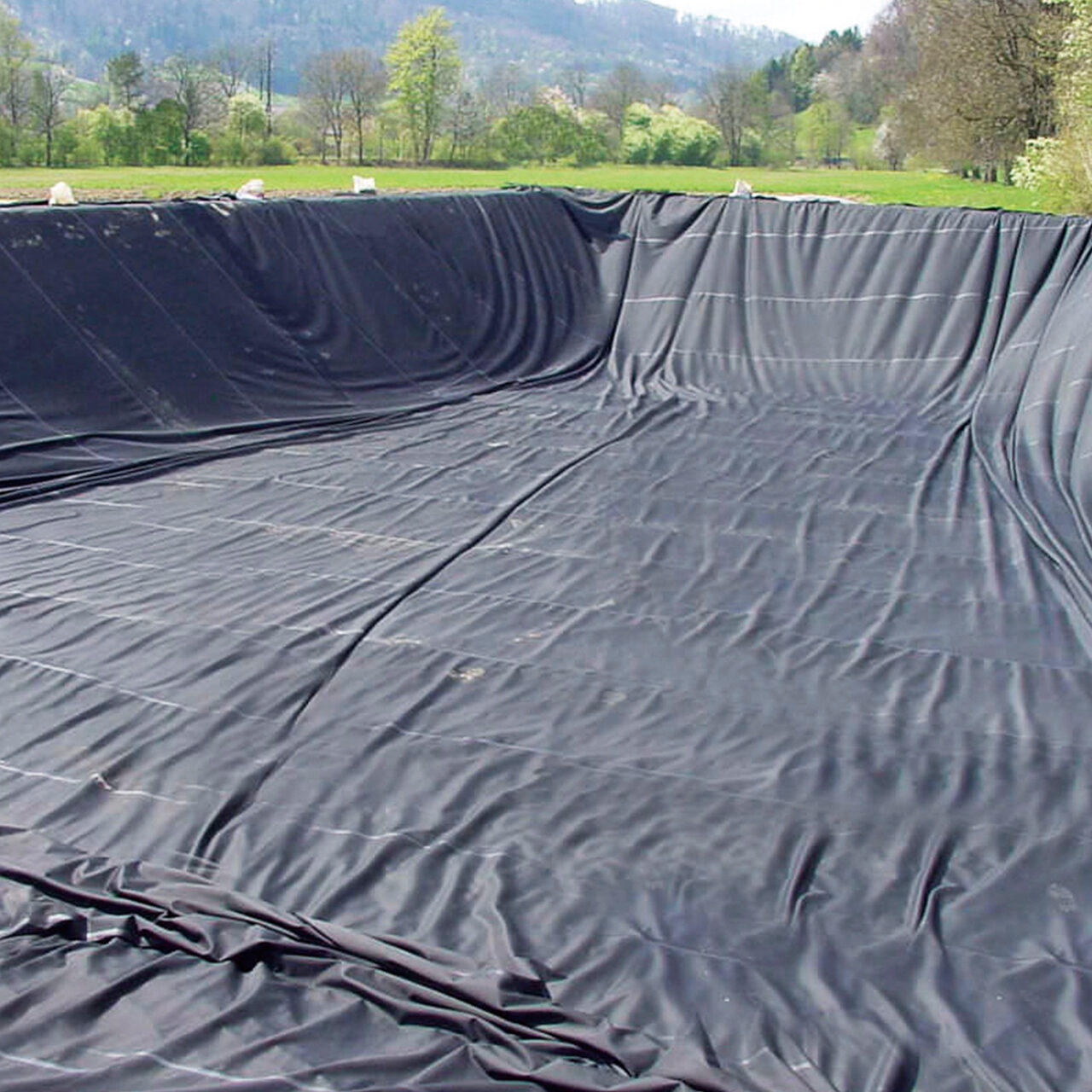

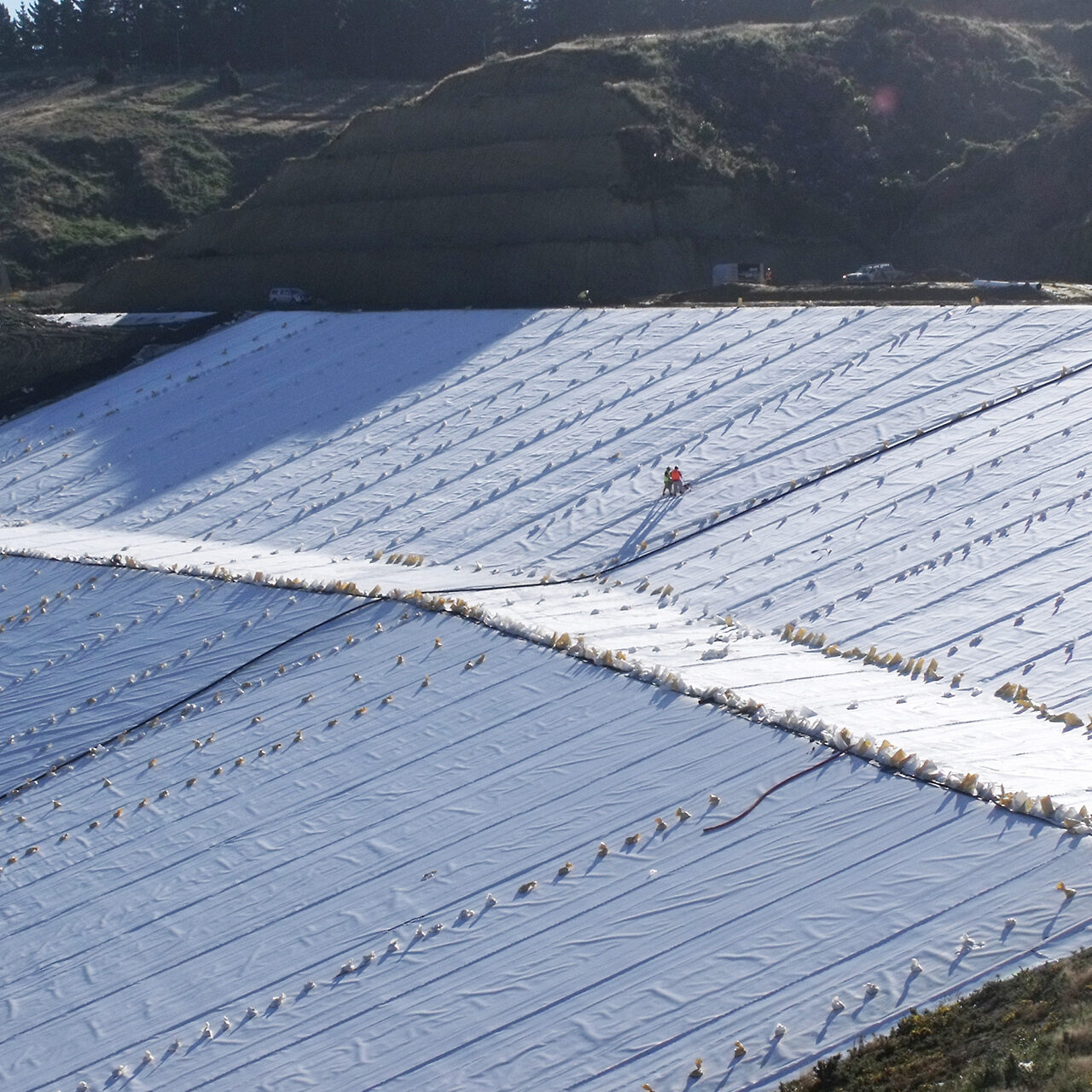

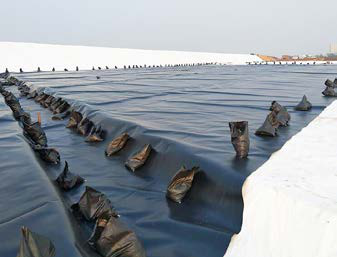

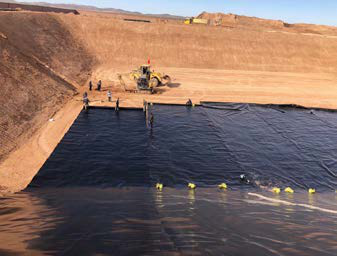

It's widely used in waterproofing field in industrial & civil buildings including the green roof, flat roof and the sloping roof. Underground waterproof: reservoir, dam, pool, tunnel, grain depot, artificial engineering, landfill, artificial lake.
Application

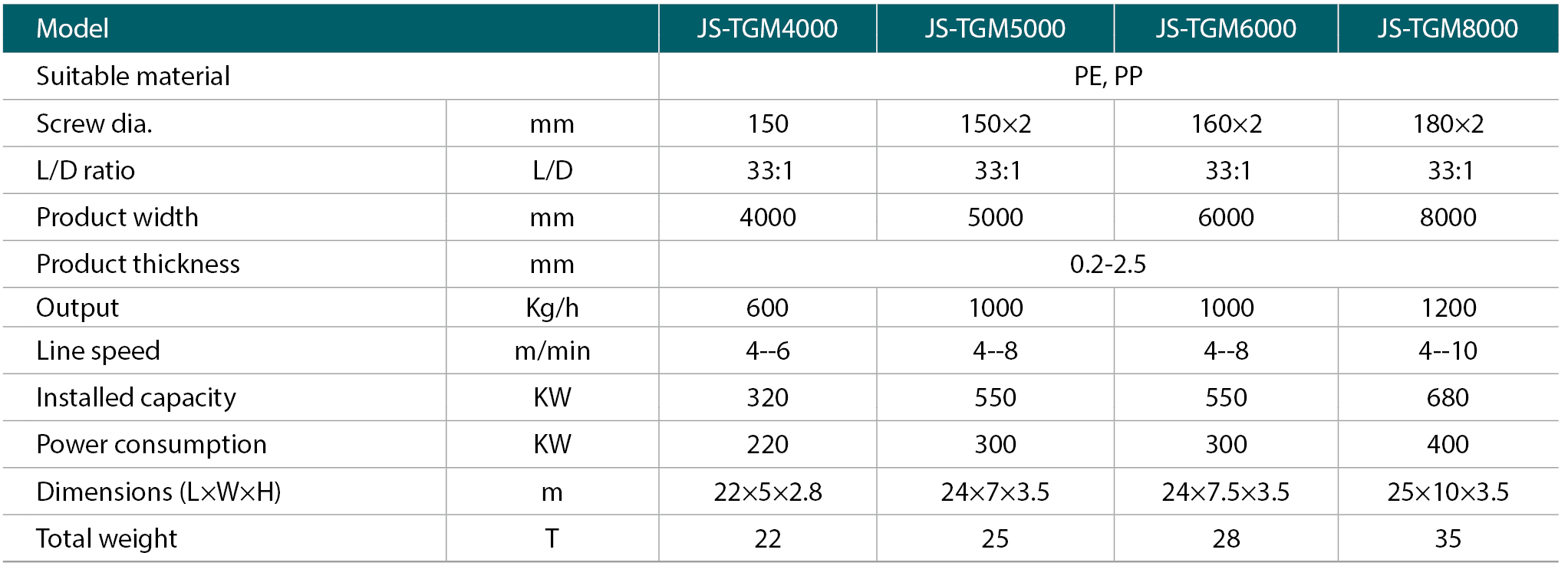

Main Technical Specification
| Model | JS-TGM4000 | JS-TGM5000 | JS-TGM6000 | JS-TGM8000 | |
|---|---|---|---|---|---|
| Suitable material | HDPE, LDPE, LLDPE, MDPE | ||||
| Screw dia. | mm | 150 | 150×2 | 160×2 | 180×2 |
| L/D ratio | L/D | 33:1 | 33:1 | 33:1 | 33:1 |
| Product width | mm | 4000 | 5000 | 6000 | 8000 |
| Product thickness | mm | 0.2--3 | |||
| Output | Kg/h | 600 | 1000 | 1000 | 1200 |
| Line speed | m/min | 4--6 | 4--8 | 4--8 | 4--10 |
| Installed capacity | KW | 320 | 550 | 550 | 680 |
| Power consumption | KW | 220 | 300 | 300 | 400 |
| Dimensions (L×W×H) | m | 22×5×2.8 | 24×7×3.5 | 24×7.5×3.5 | 25×10×3.5 |
| Total weight | T | 22 | 25 | 28 | 35 |
