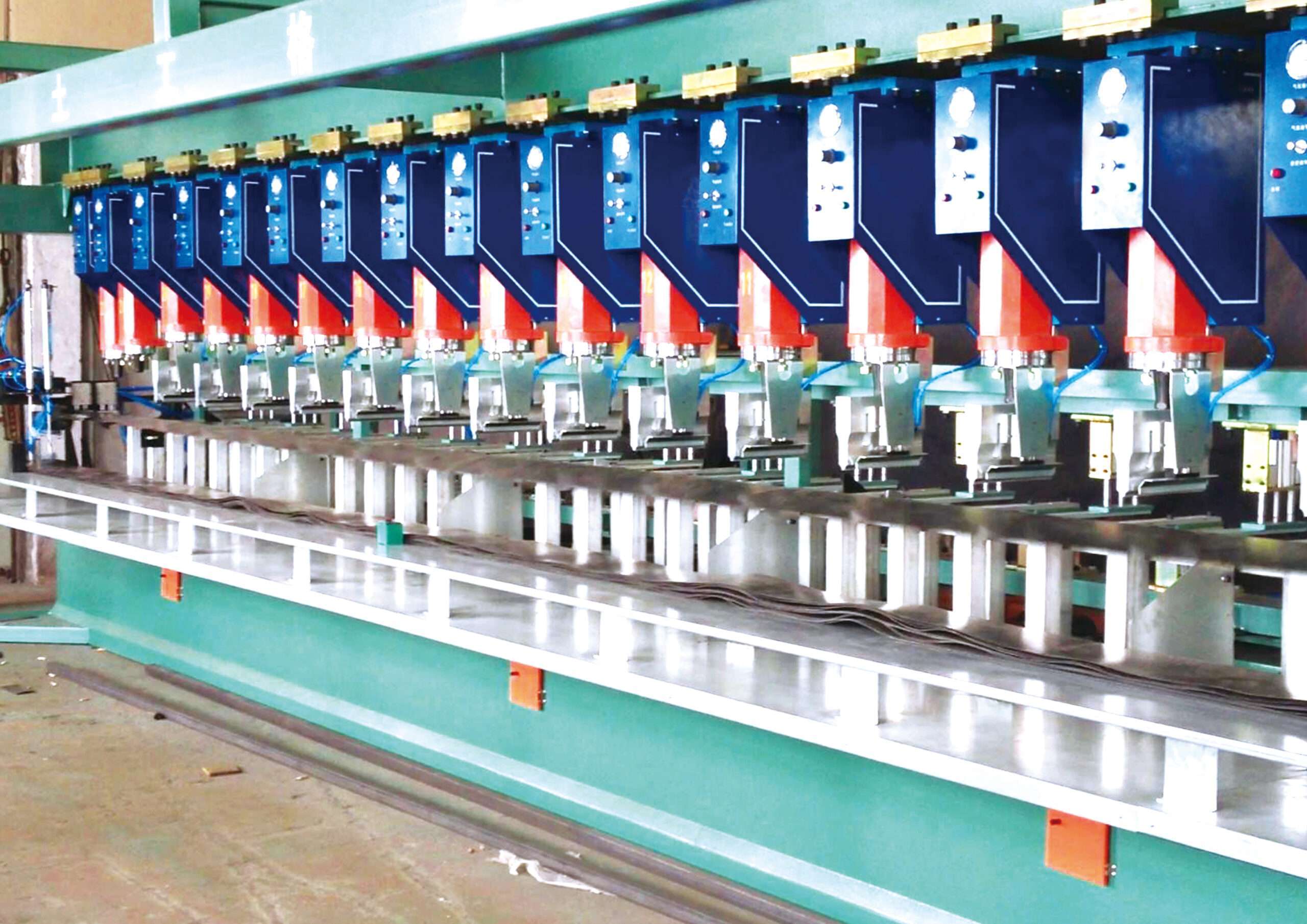

Full-automatic Geocell Welding Machine
- ● PLC control and imported piezoelectric ceramic transducer, output is highly and stability;
- ● Floating feeding bracket, to keep operating height (don't need operator bend down), operation is more easy;
- ● Independent units (frame, generator, retaining clip etc.), the welding pitch will be easy to be adjusted;
Key Features
Product Description
- ● PLC control and imported piezoelectric ceramic transducer, output is highly and stability;
- ● Floating feeding bracket, to keep operating height (don't need operator bend down), operation is more easy;
- ● Independent units (frame, generator, retaining clip etc.), the welding pitch will be easy to be adjusted;
- ● New type welding horn structure, life time is longer, welding strengthen is better;
- ● The distance between center of horn and frame is reduced, the equipment's rigidity is better;
- ● Max. height of geocell can reach to 300 mm;
- ● When width of strip less than half of max. geocell height, the 2 strips can be welded at the same time, efficiency is double.

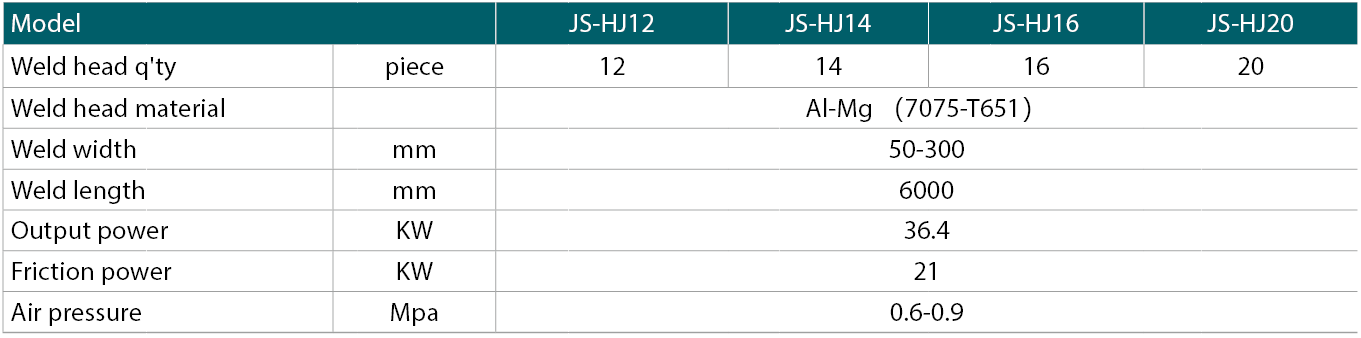

Main Technical Specification
| Model | JS-HJ12 | JS-HJ14 | JS-HJ16 | JS-HJ20 | |
|---|---|---|---|---|---|
| Weld head q'ty | piece | 12 | 14 | 16 | 20 |
| Weld head material | Al-Mg （7075-T651），Titanium alloy , stainless steel | ||||
| Weld width | mm | 50-300 | |||
| Weld length | mm | 6000 | |||
| Output power | KW | 36.4 | |||
| Friction power | KW | 21 | |||
| Air pressure | Mpa | 0.6-0.9 | |||
