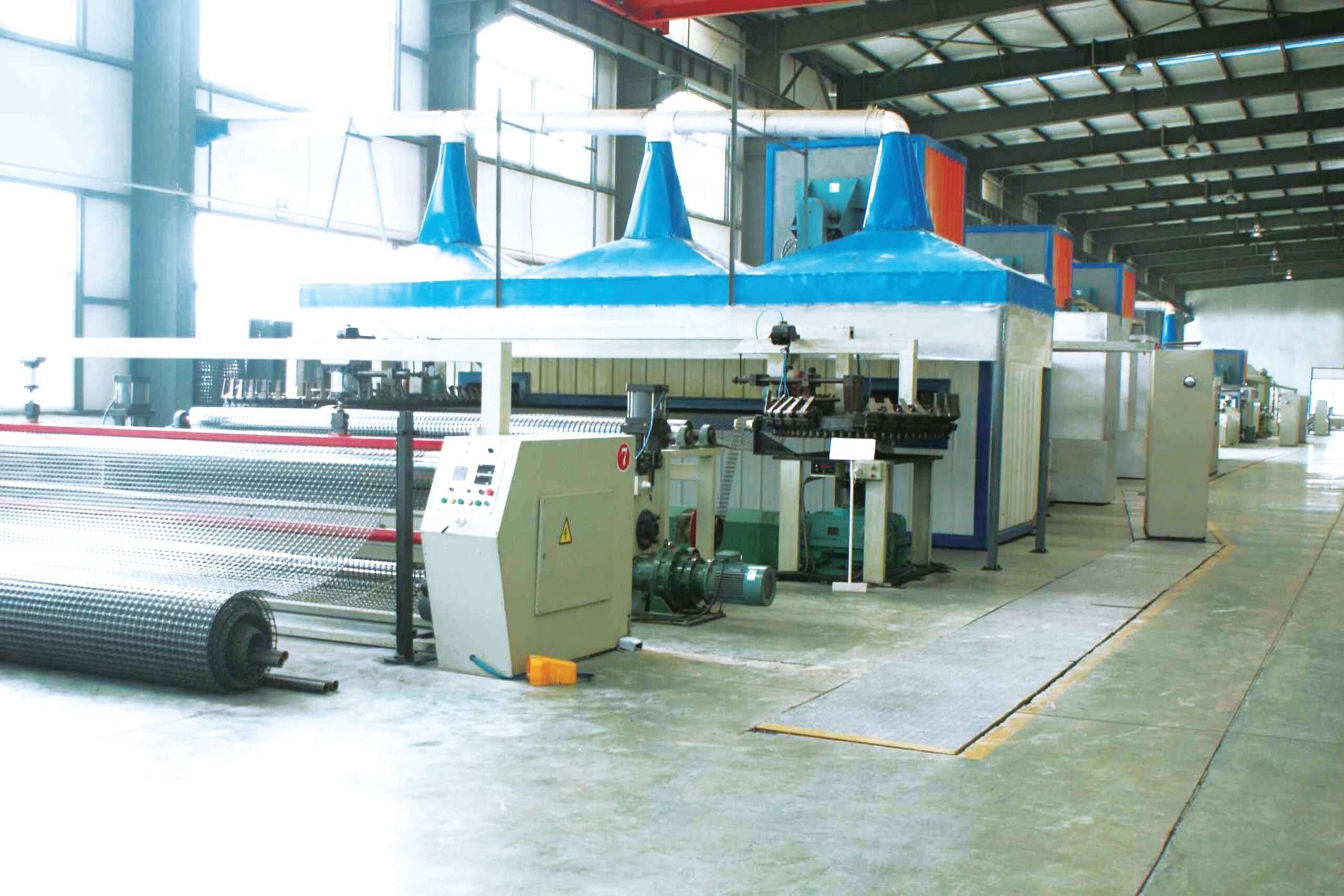

Plastic Geogrid Production Line
Controlled by PLC, Junsheng geogrid line realizes the remote control, convenient, accurate, and reliable.
Longitudinal stretching part adopts hot stretching rollers, Transversal stretching part is heated by hot air generated from the heat exchanger heated by the hot oil.
Key Features
Product Description
Controlled by PLC, Junsheng geogrid line realizes the remote control, convenient, accurate, and reliable.
Longitudinal stretching part adopts hot stretching rollers, Transversal stretching part is heated by hot air generated from the heat exchanger heated by the hot oil.
So, the final single-direction geogrid and bi-direction geogrid is uniformity and high quality.

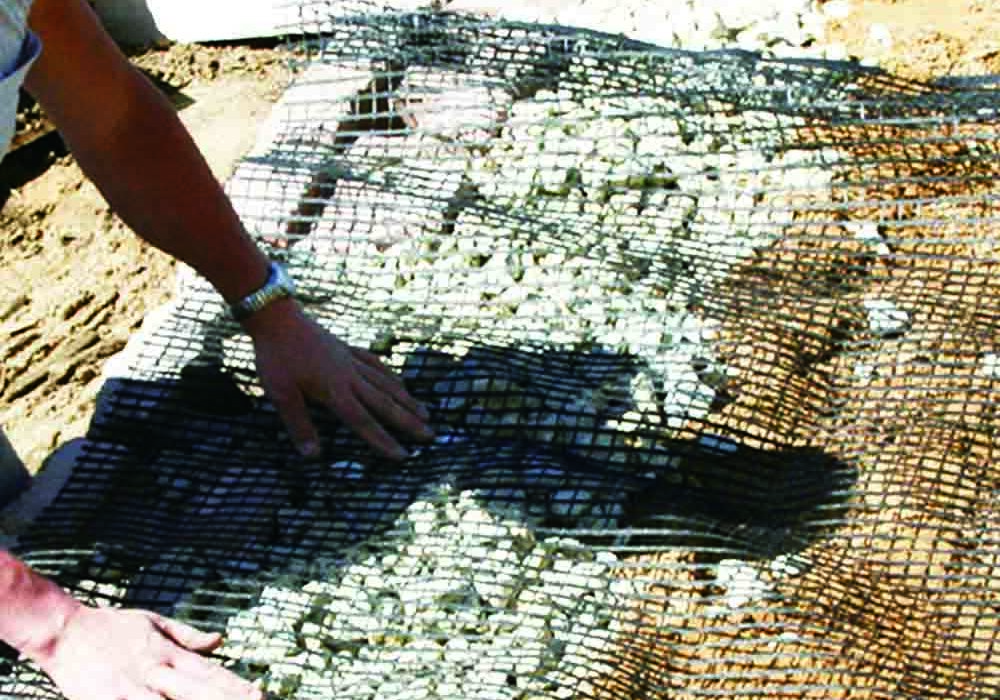

Geogrid is widely used in fields of water-conservancy, highway, railway, coal mining, and architecture, etc.

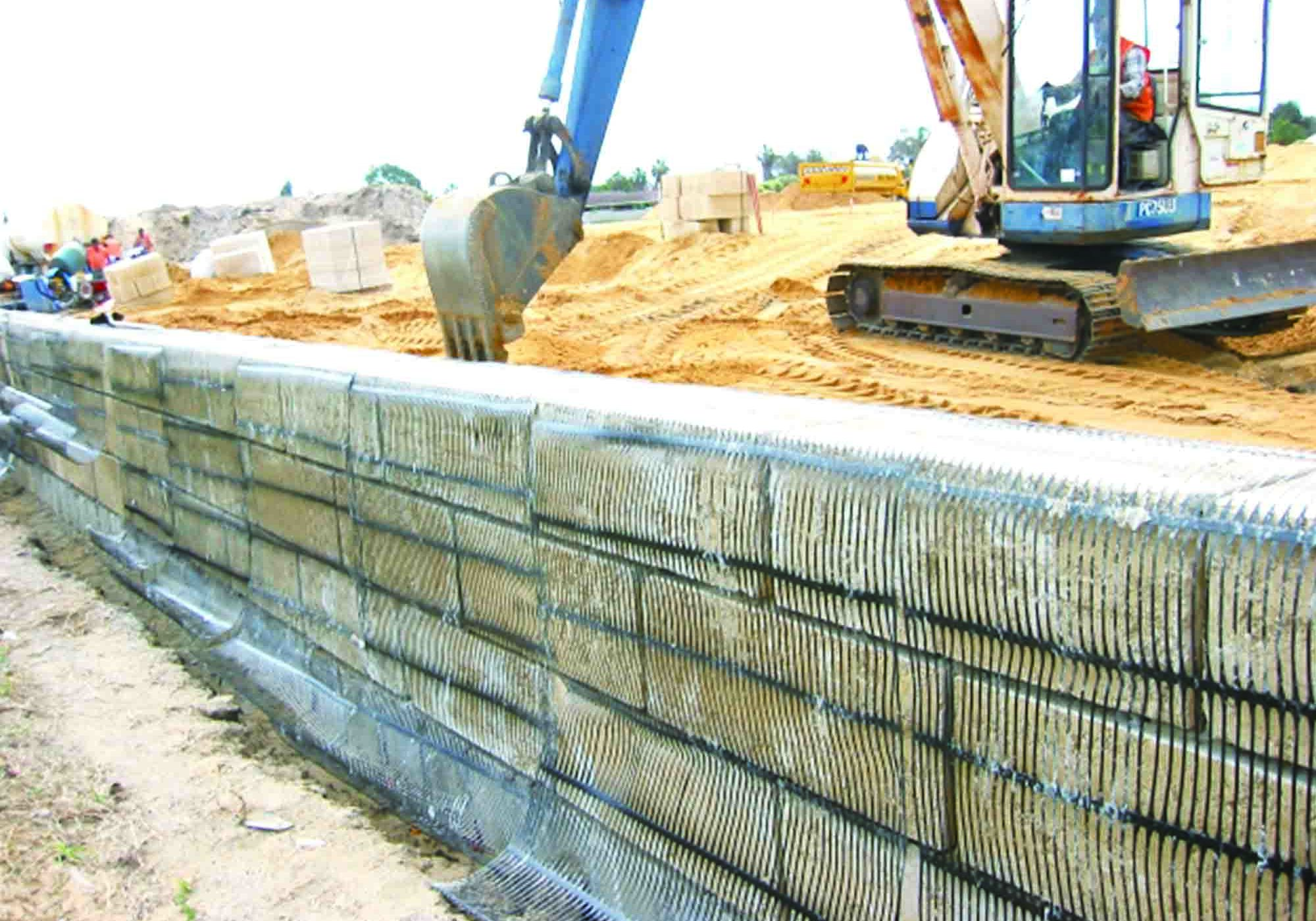

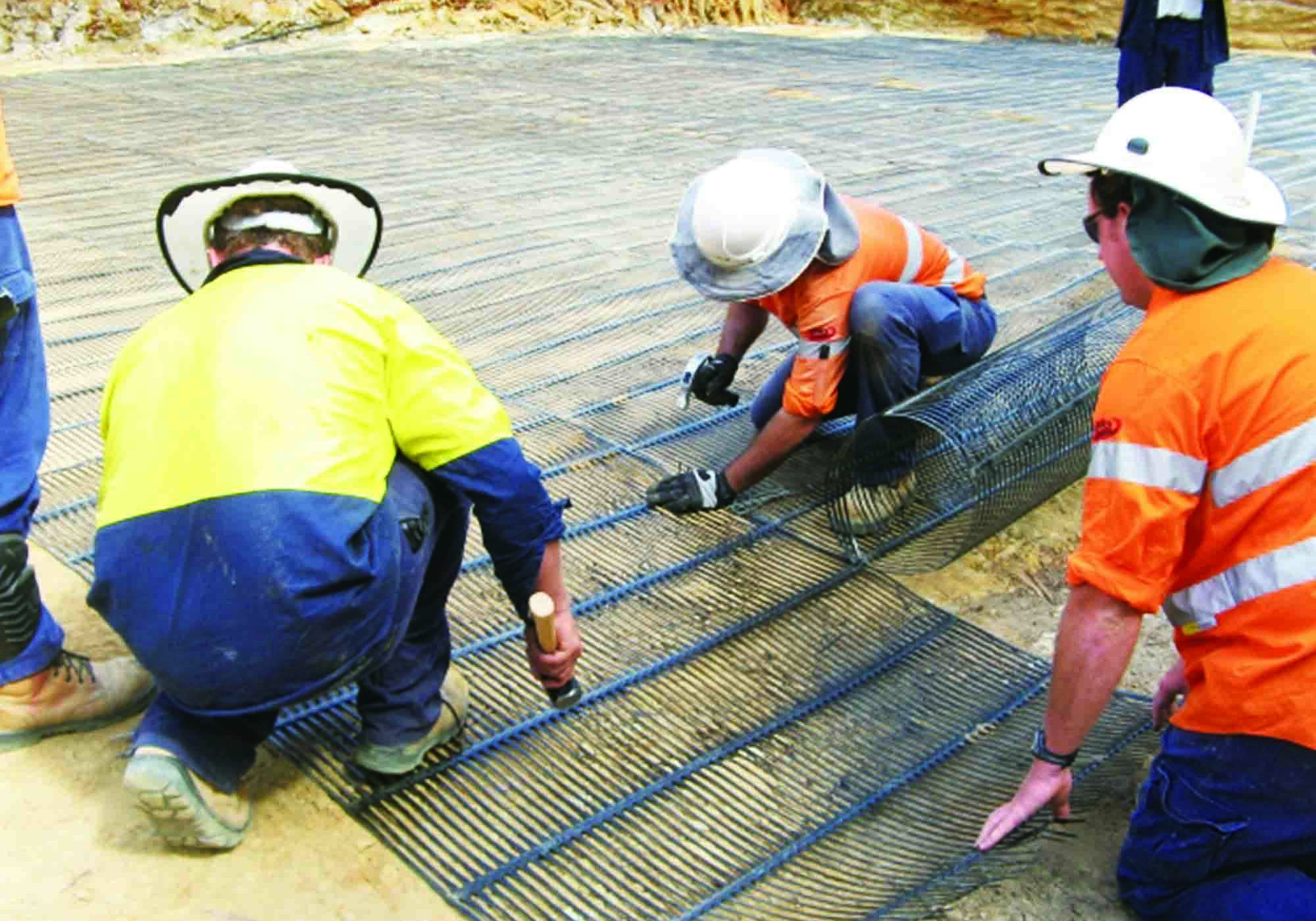

It is used to build and protect the dam and reinforce the roadbed of the expressway and railway.
Also used as the flood prevention net, dust-block and wall-protection net, and the mine top net, etc.

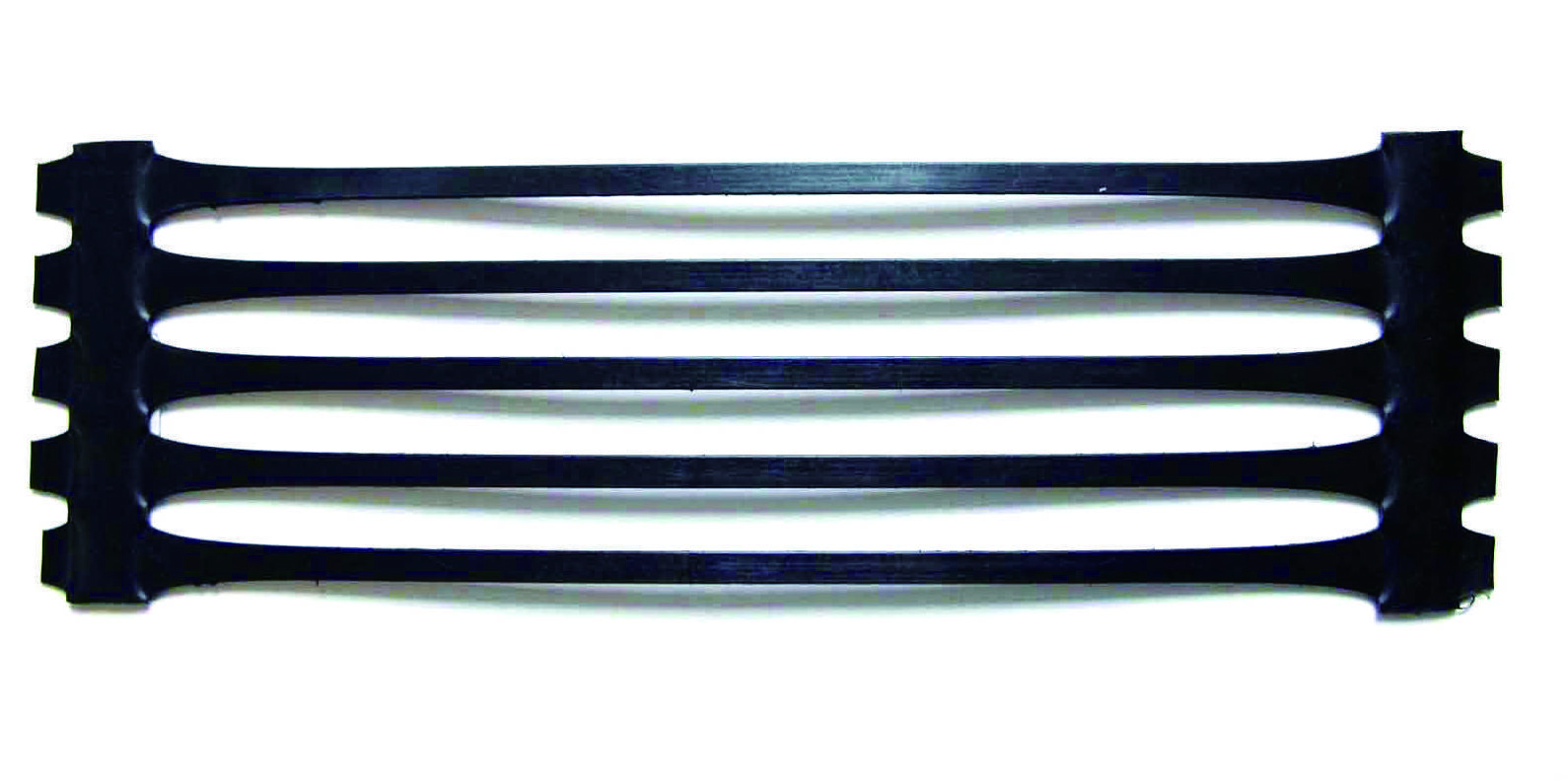

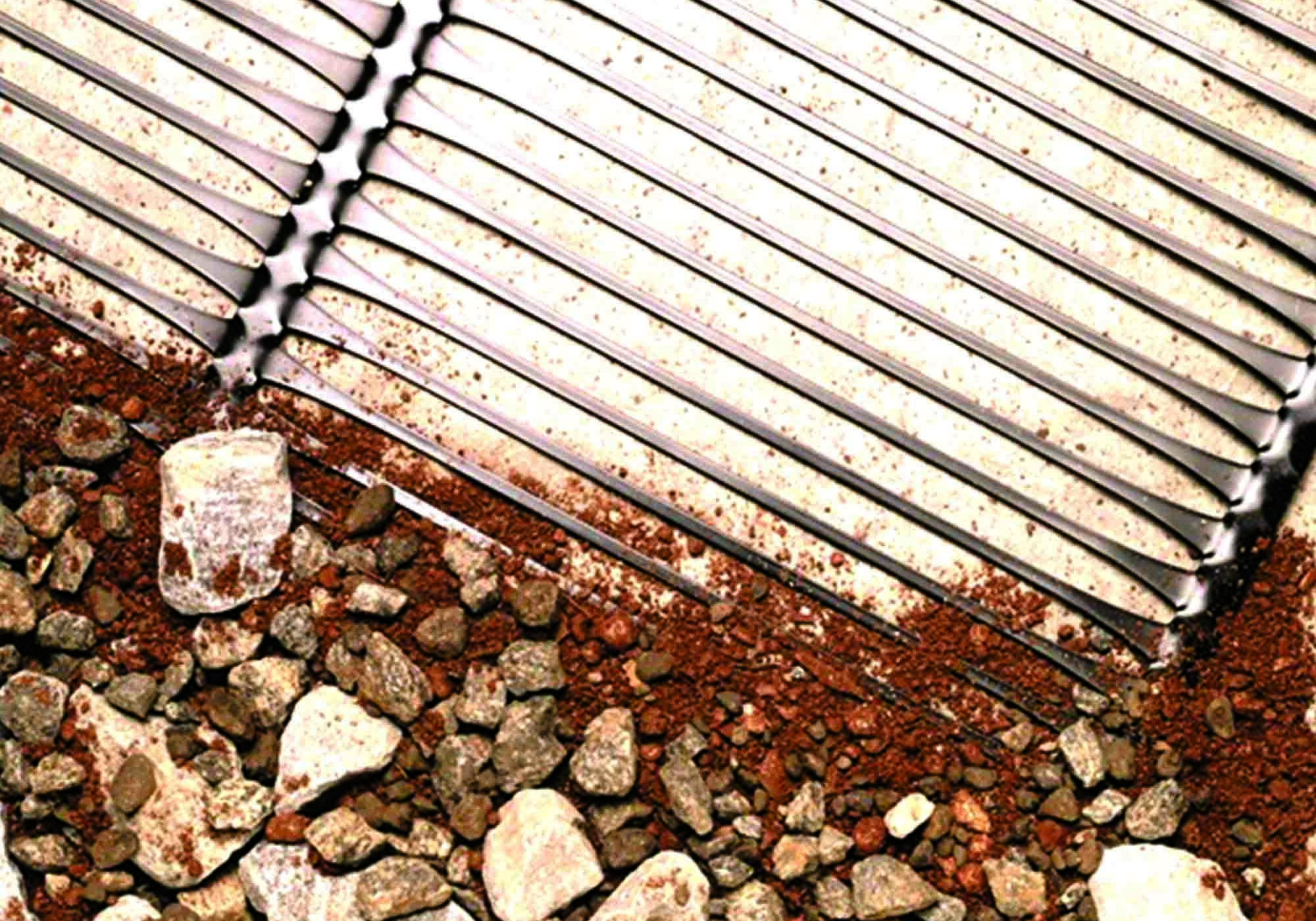

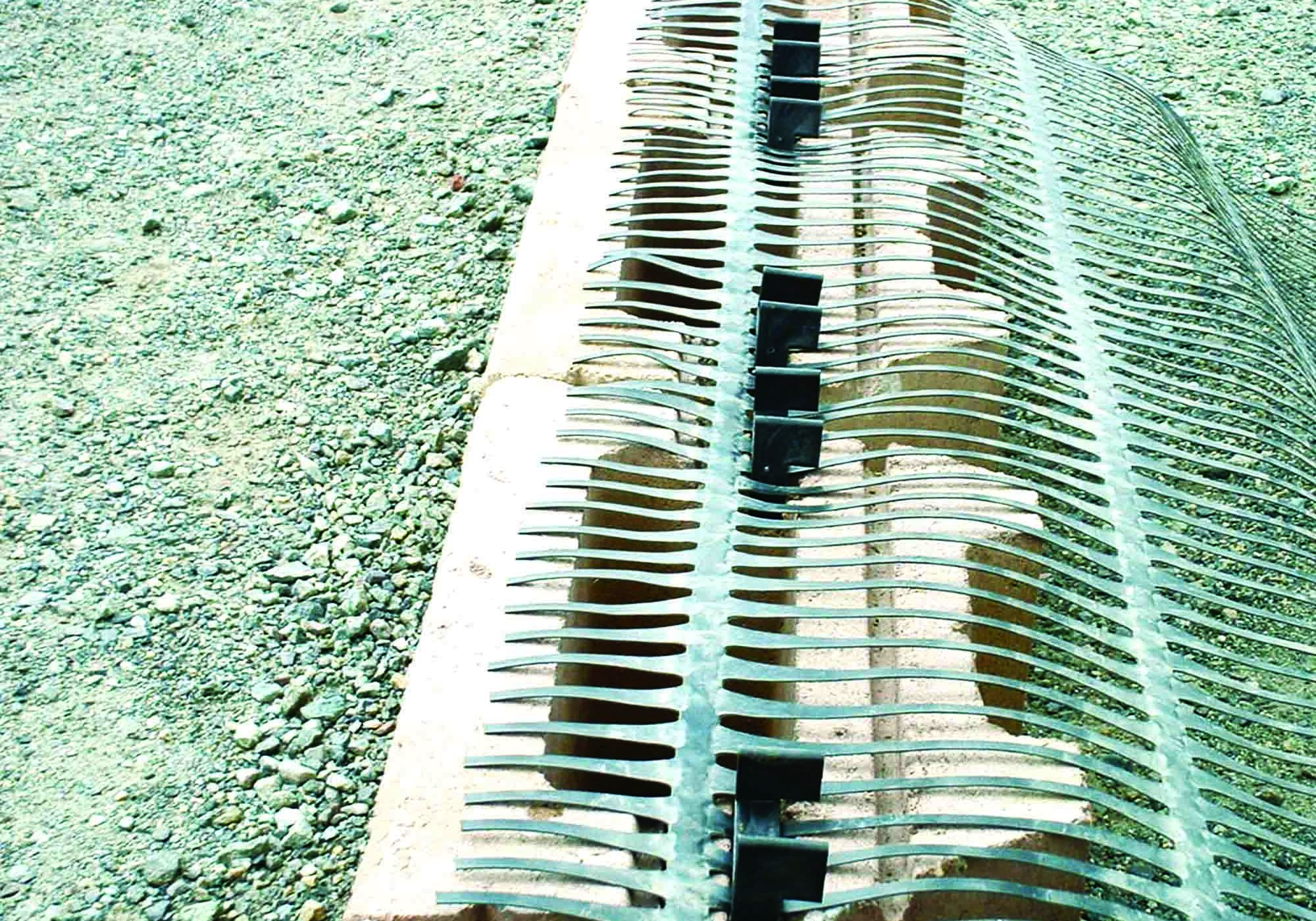

Single-direction geogrid

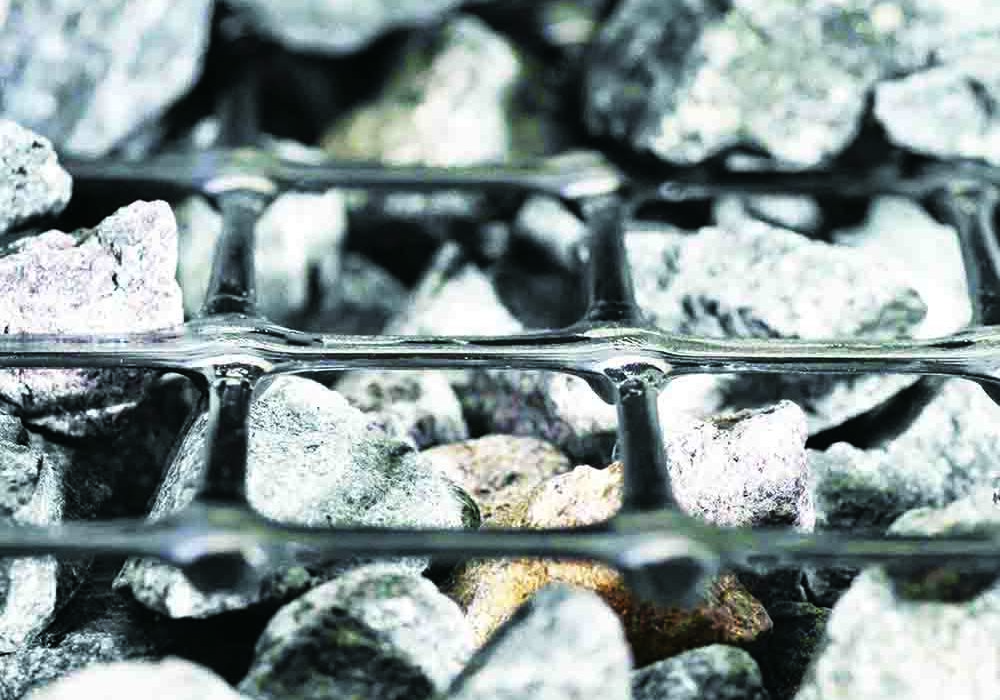

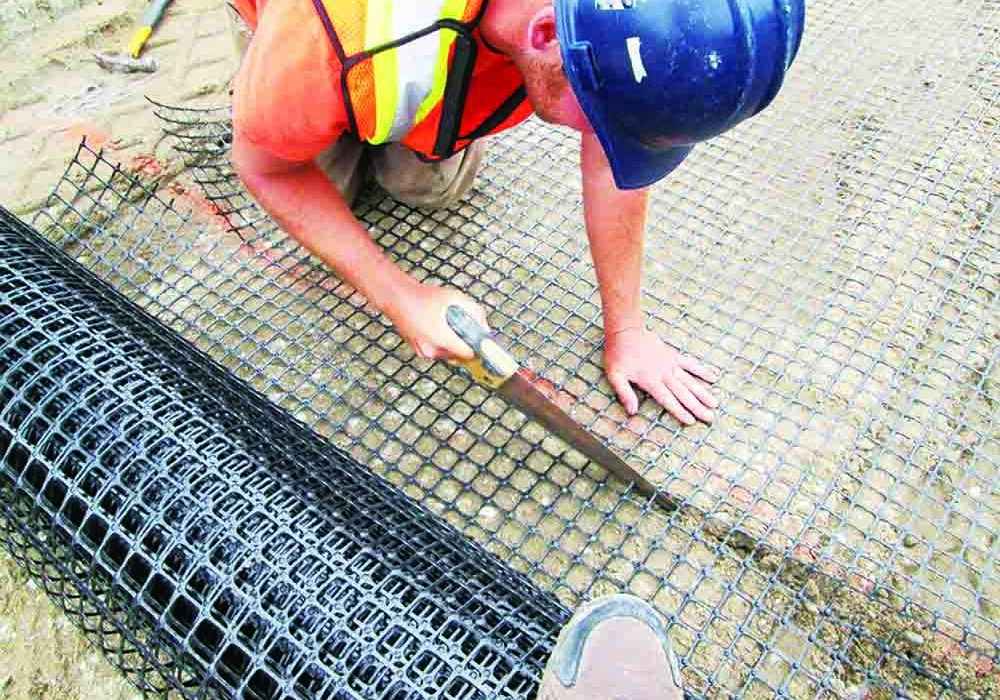

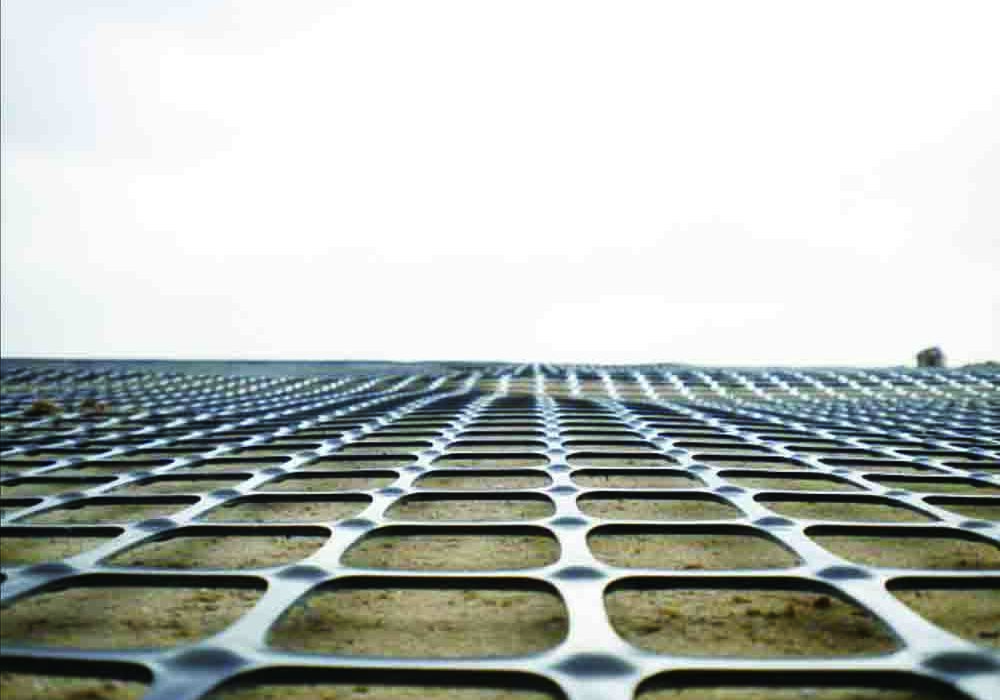

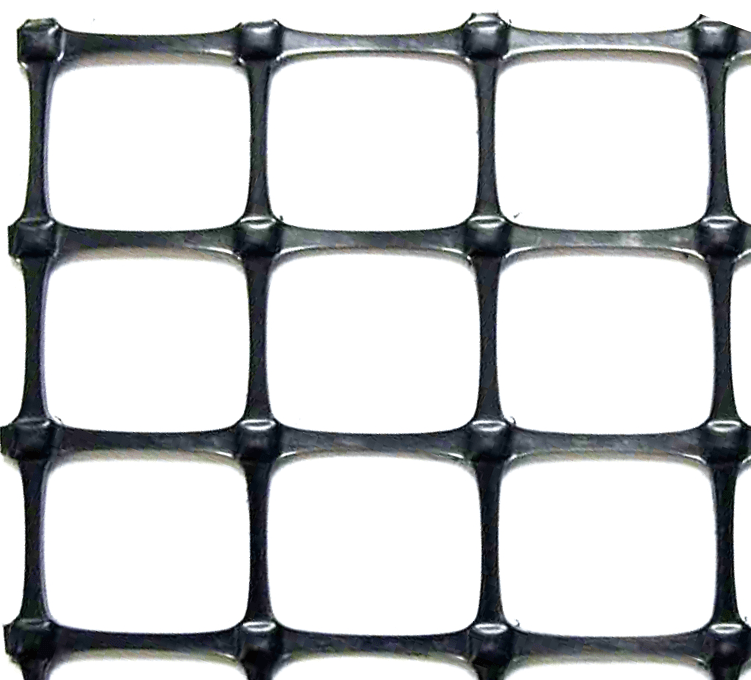

Double-direction geogrid

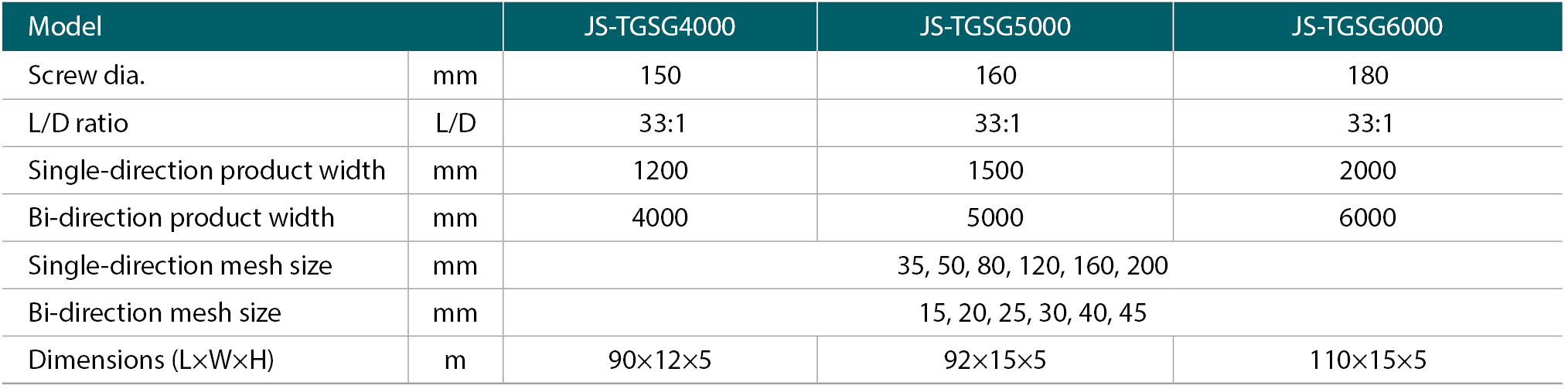

Main Technical Specification
| Model | JS-TGSG4000 | JS-TGSG5000 | JS-TGSG6000 | |
|---|---|---|---|---|
| Screw dia. | mm | 150 | 160 | 180 |
| L/D ratio | L/D | 33:1 | 33:1 | 33:1 |
| Single-direction product width | mm | 1200 | 1500 | 2000 |
| Bi-direction product width | mm | 4000 | 5000 | 6000 |
| Single-direction mesh size | mm | 35, 50, 80, 120, 160, 200 | ||
| Bi-direction mesh size | mm | 15, 20, 25, 30, 40, 45 | ||
| Dimensions (L×W×H) | m | 90×12×5 | 92×15×5 | 110×15×5 |
Related Products
View All →

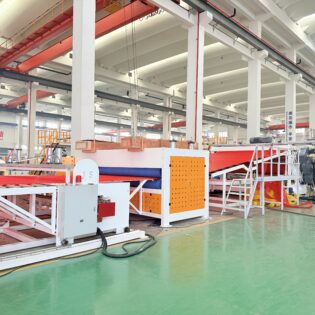

Plastic Geomembrane Production Line
Junsheng geomembrane production line can produce the plastic geomembrane with thickness from 0.3 to 5mm and width of 4000 to 8000mm, the geomembrane can be monolayer, multilayer, both side smooth or embossing surface and laminated with non-woven fabric, the thickness of the geomembrane is uniform.

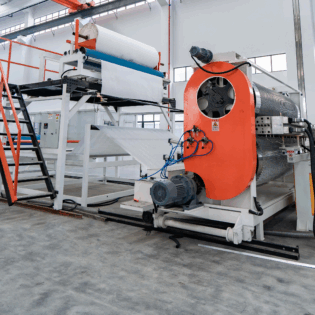

Plastic Geocell Production Line
