Plastic Vertical Drainage Machine

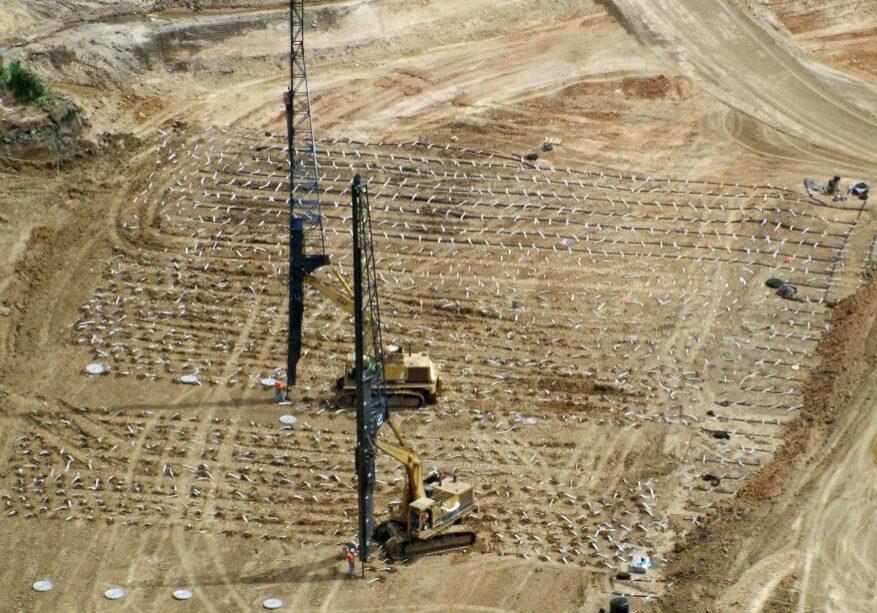

Junsheng plastic drainage belt machine uses advanced electrical control system, high sensitivity, long life machine service, high degree of automation. Plastic drainage belt used to reinforce soft soil, silt soil, filling soil and other saturated
hydraulic fill filling viscous and miscellaneous drainage consolidation method using soft foundation treatment of good vertical channels, greatly reducing the soft soil consolidation time.
/app/images/img_393.webp)
Product Description
Junsheng plastic drainage belt machine uses advanced electrical control system, high sensitivity, long life machine service, high degree of automation. Plastic drainage belt used to reinforce soft soil, silt soil, filling soil and other saturated
hydraulic fill filling viscous and miscellaneous drainage consolidation method using soft foundation treatment of good vertical channels, greatly reducing the soft soil consolidation time.
Main Technical Specification
| Model | JS-PSD65 | JS-PSD90 | JS-PSD120 | |
|---|---|---|---|---|
| Screw dia. | mm | 65 | 90 | 120 |
| L/D ratio | L/D | 28:1 | 28:1 | 28:1 |
| Product width | mm | 100 | 100 | 100 |
| Output | Kg/h | 30 | 50 | 80 |
| Linear speed | m/min | 5-15 | 15-25 | 20-35 |
| Installed capacity | KW | 60 | 110 | 130 |
| Power consumption | KW | 40 | 50 | 60 |
| Dimensions (L×W×H) | m | 6×1×2 | 8×1×2 | 12×1×2 |
| Total Weight | T | 3 | 5 | 8 |
Related Products
View All →

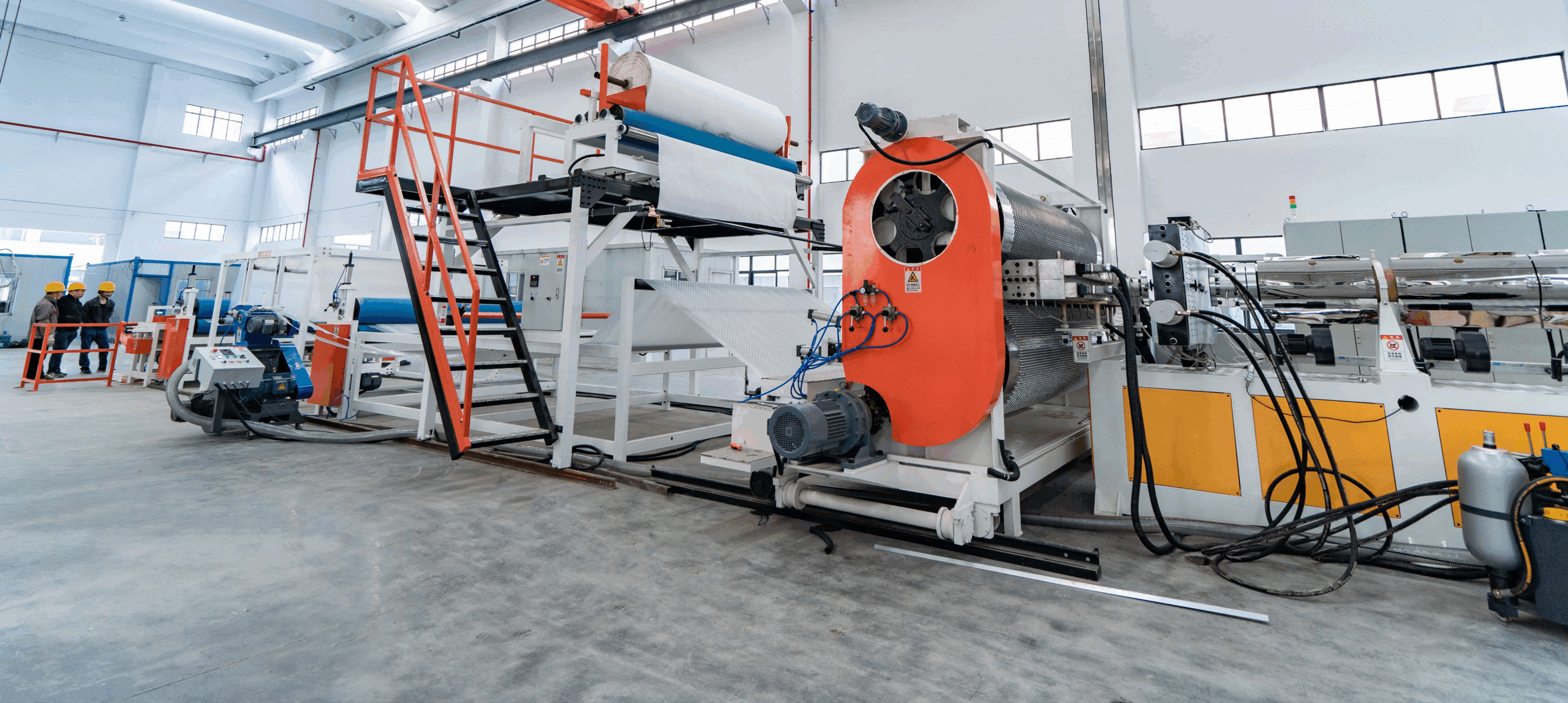

HDPE Drainage Panel Production Line
HDPE Drainage Panel Production Line is Junsheng's innovative machinery in China (patent protected).

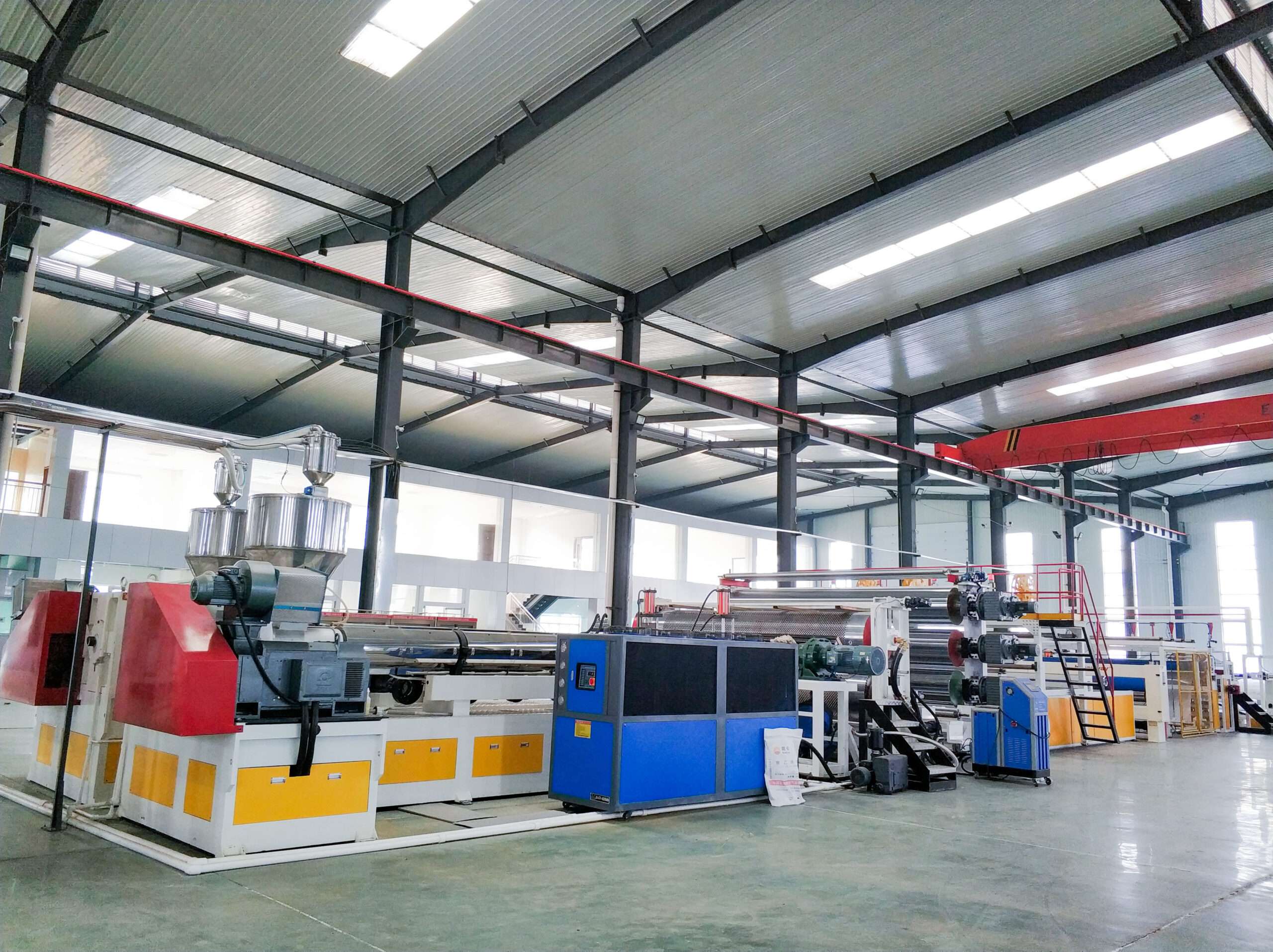

Optional Parts for Full-automatic Controlled Line
