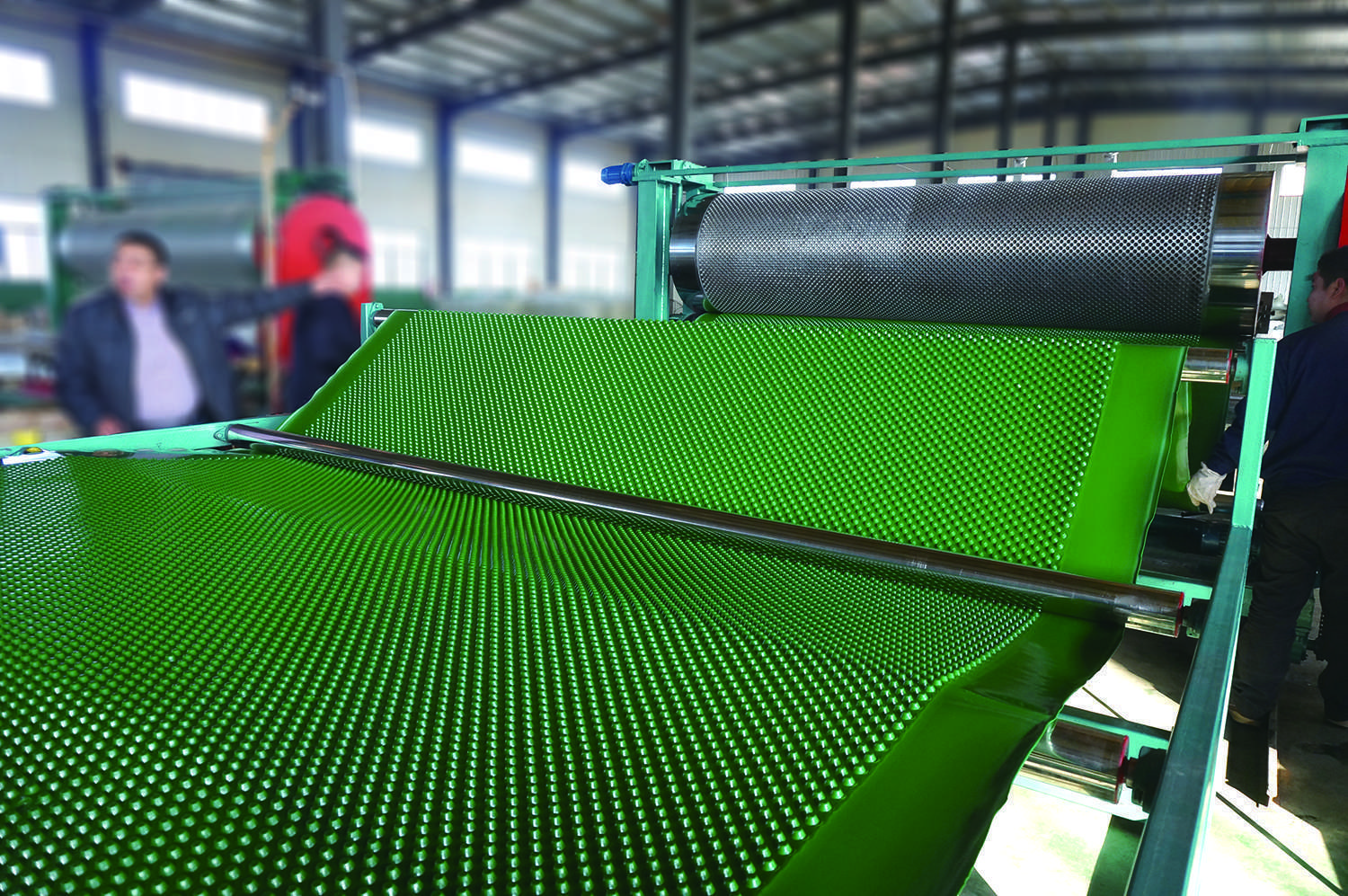

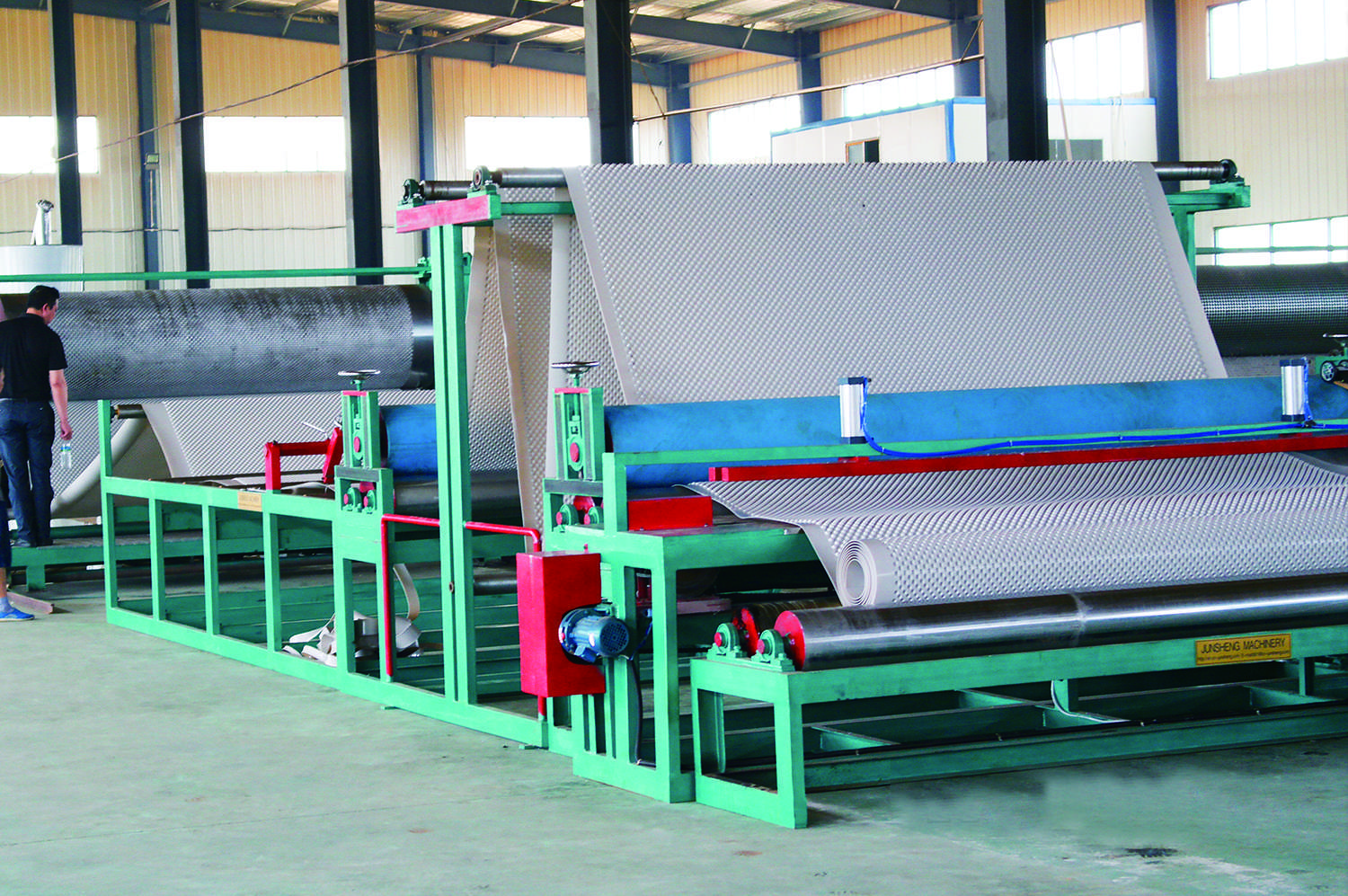

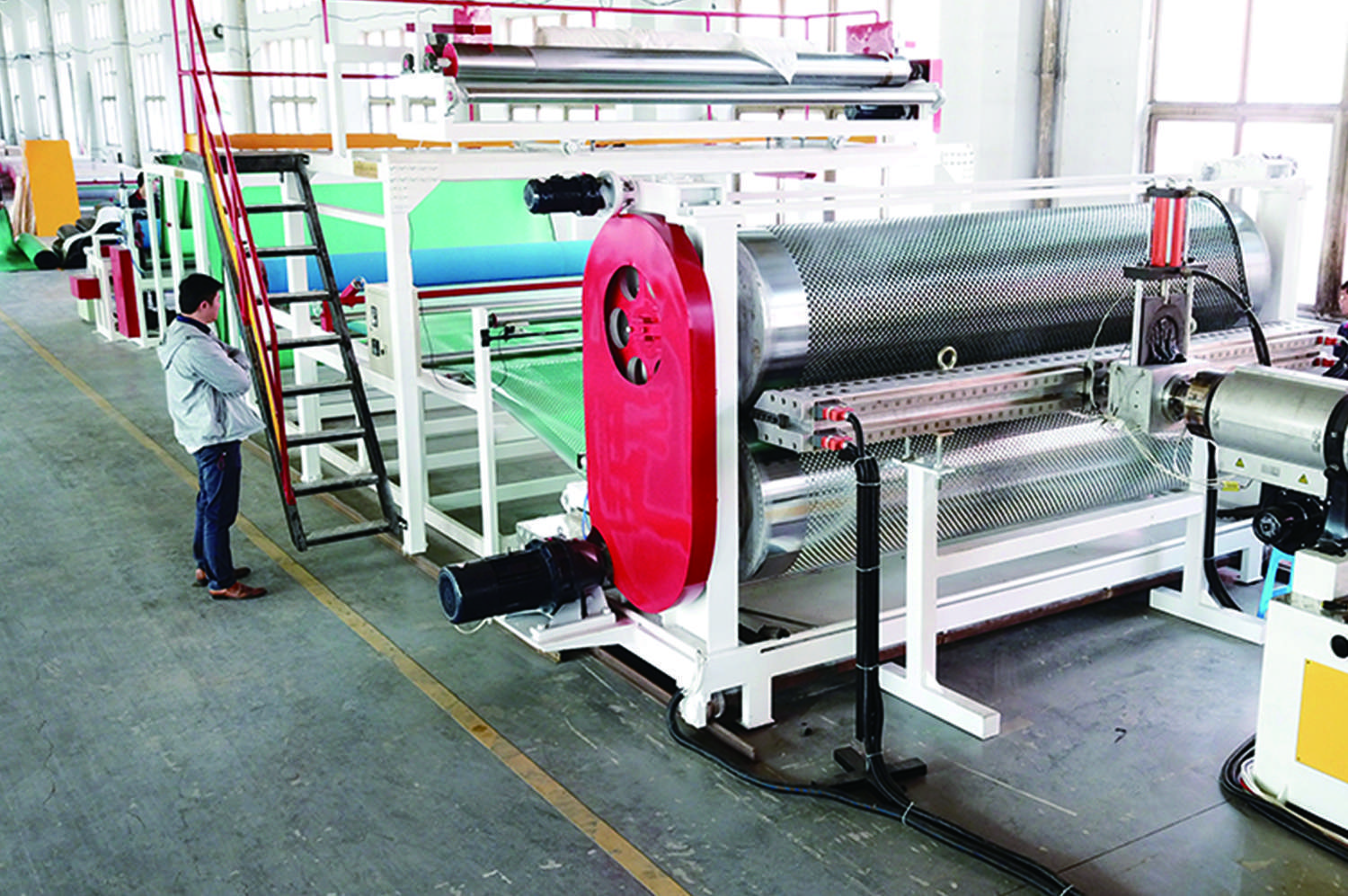

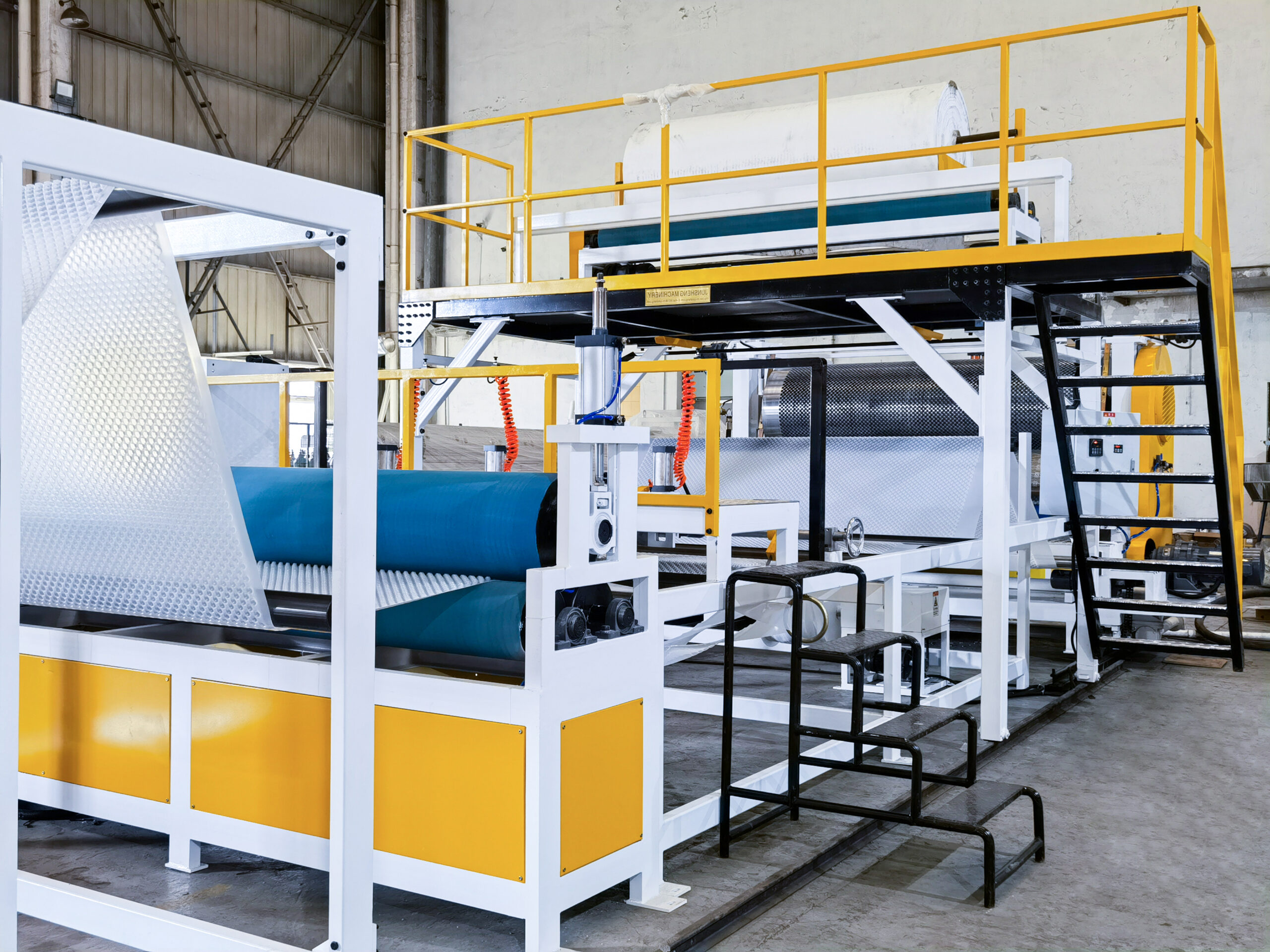

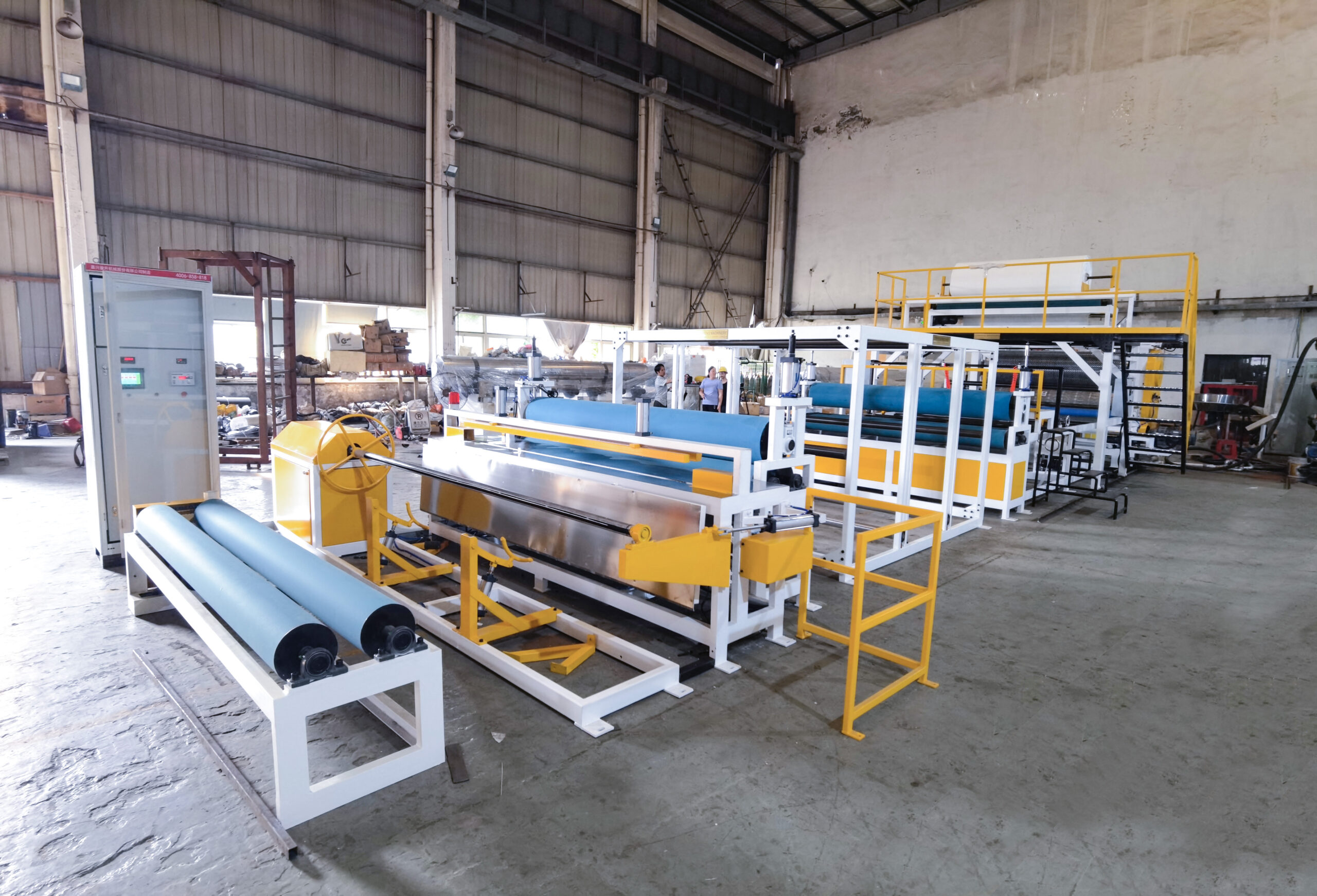

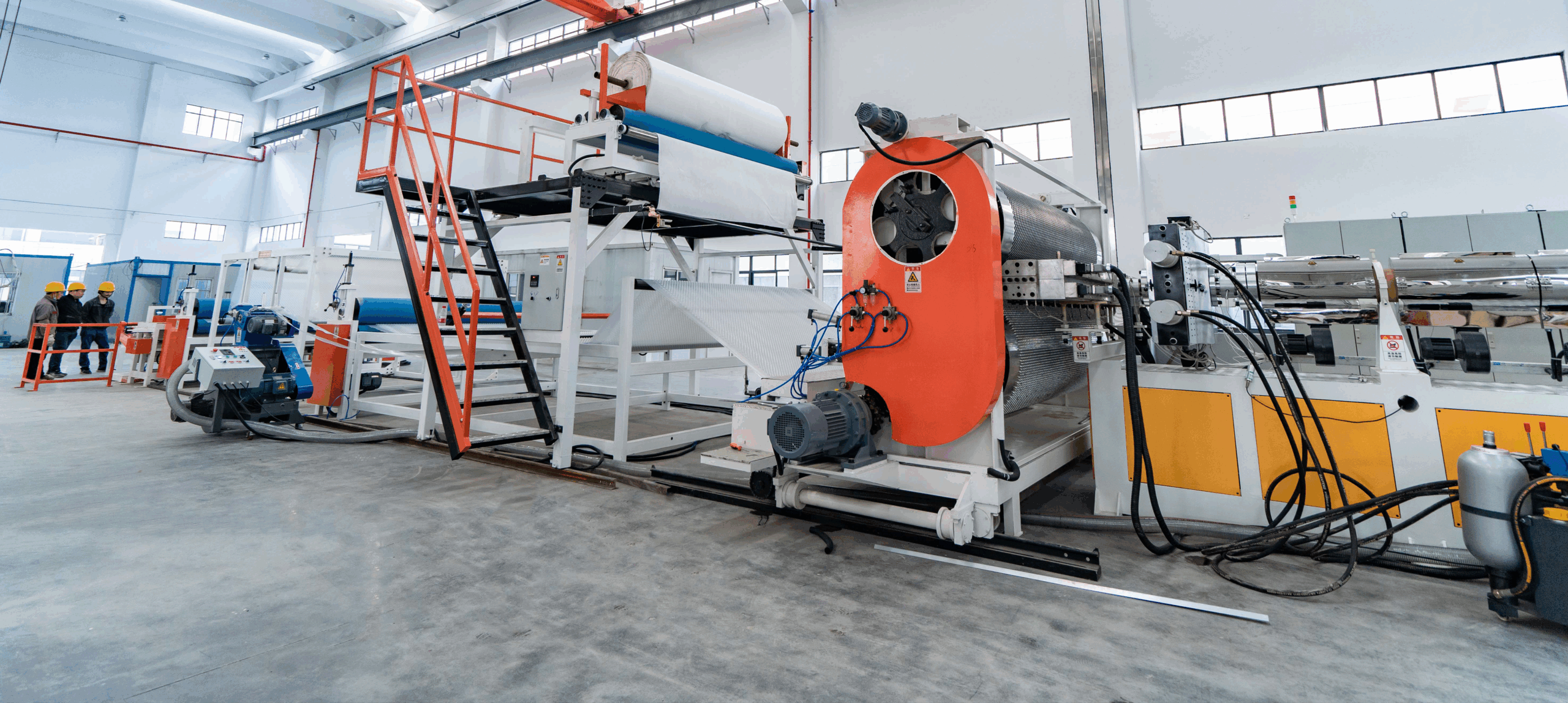

HDPE Drainage Panel Production Line
Product Description
HDPE Drainage Panel Production Line is Junsheng's innovative machinery in China (patent protected). Under unique
mechanics design, Junsheng machine has following advantages:

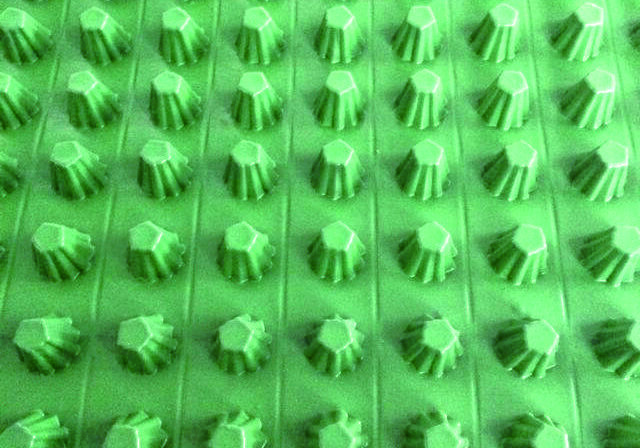

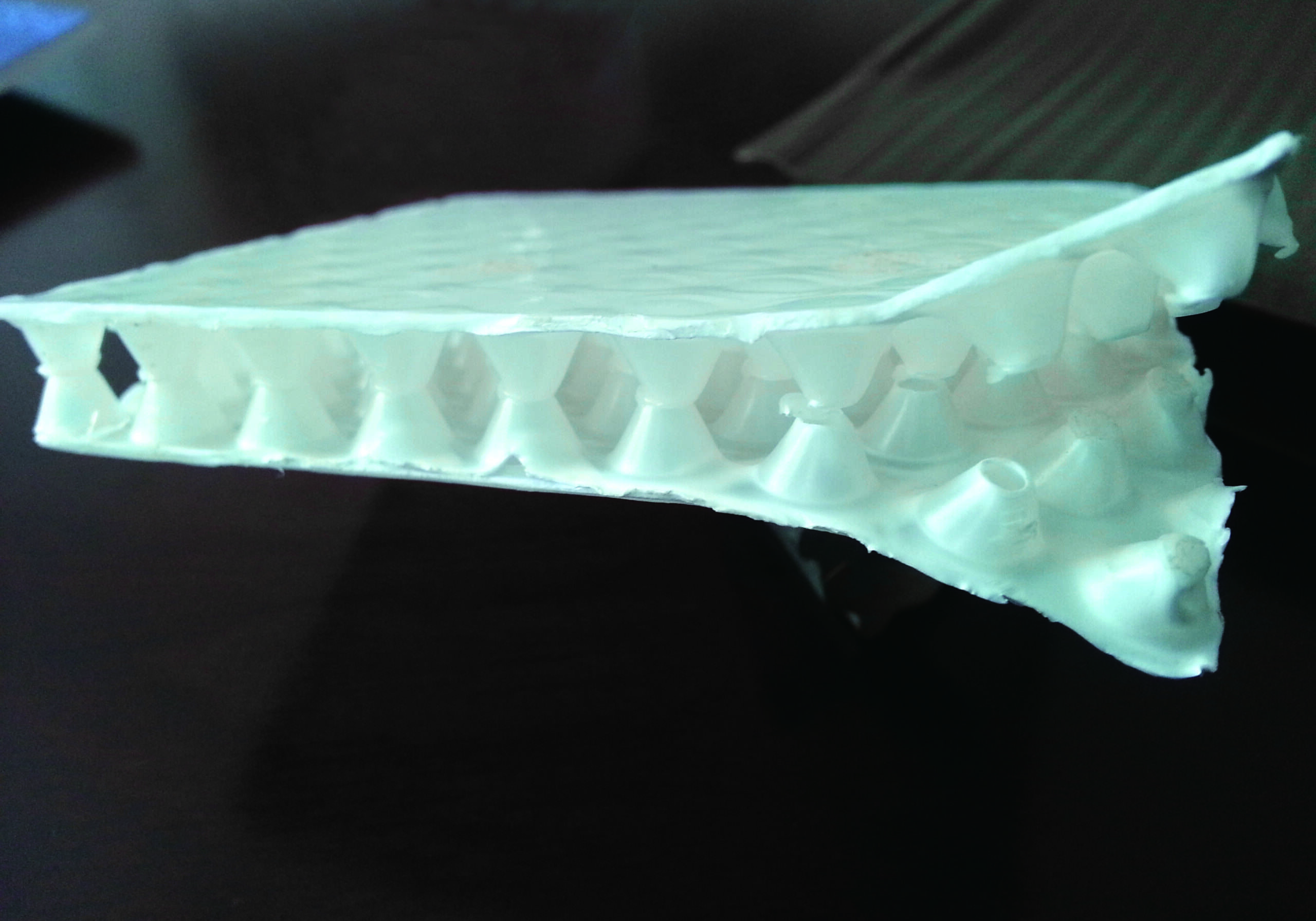

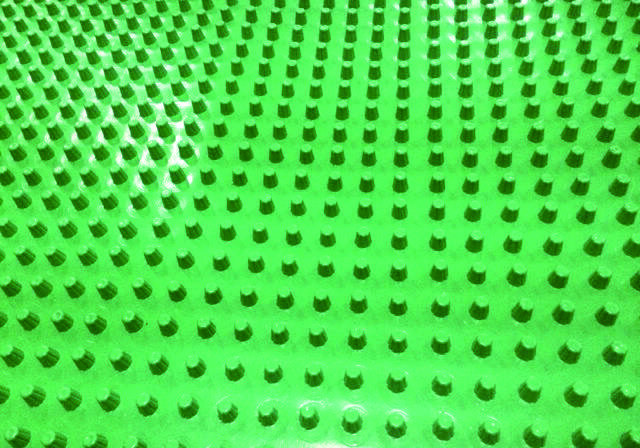

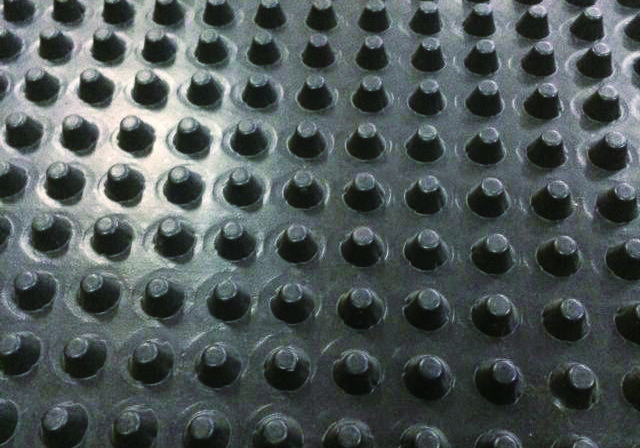

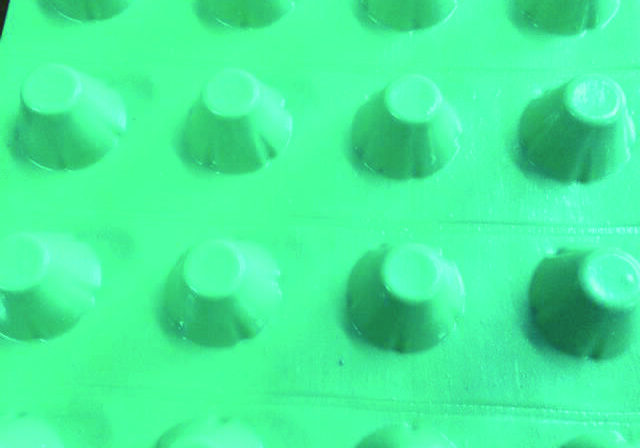

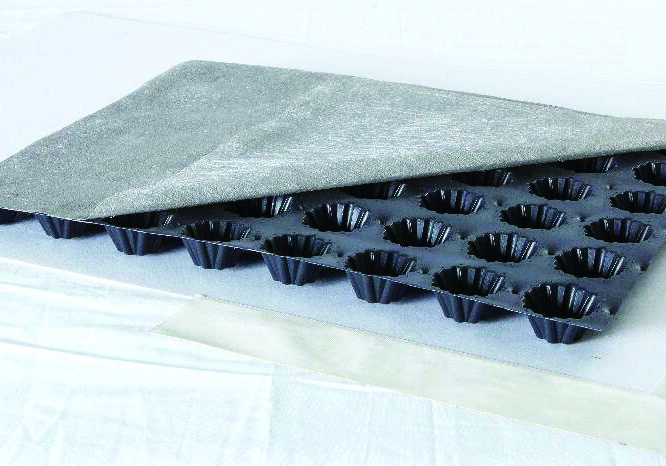

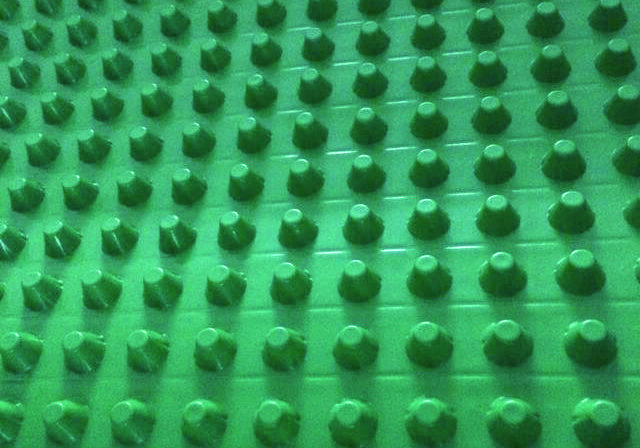

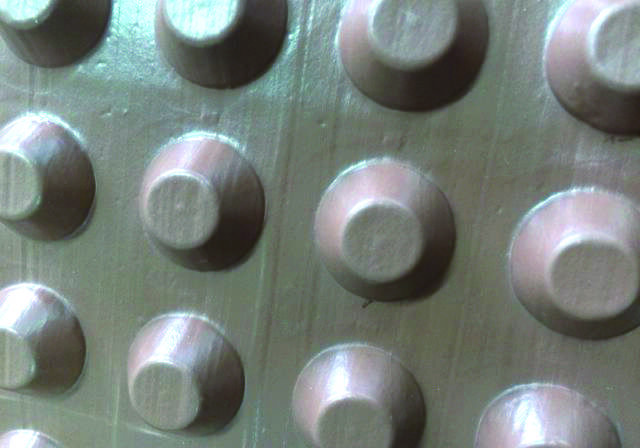

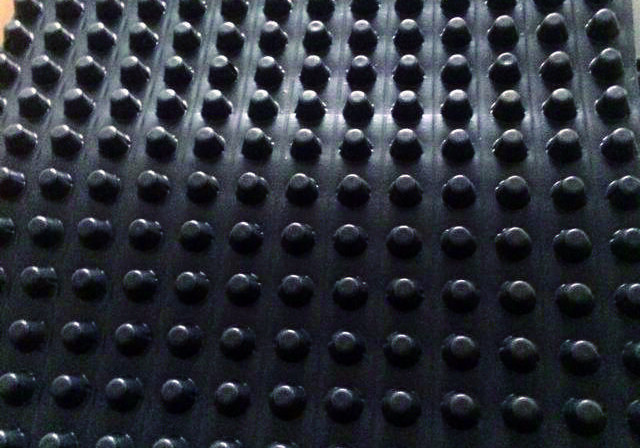

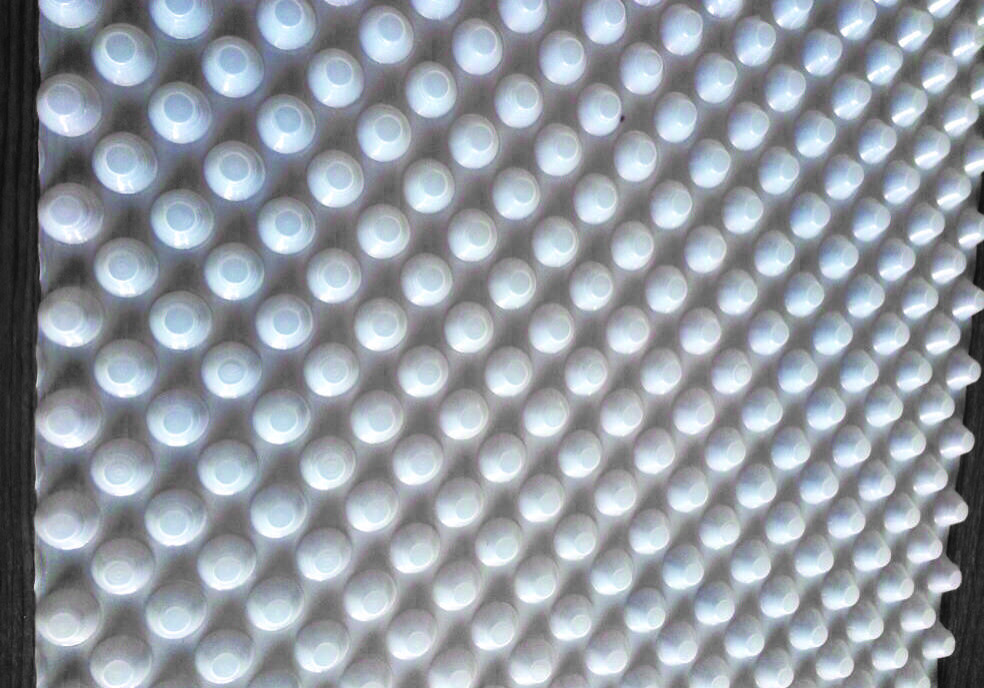

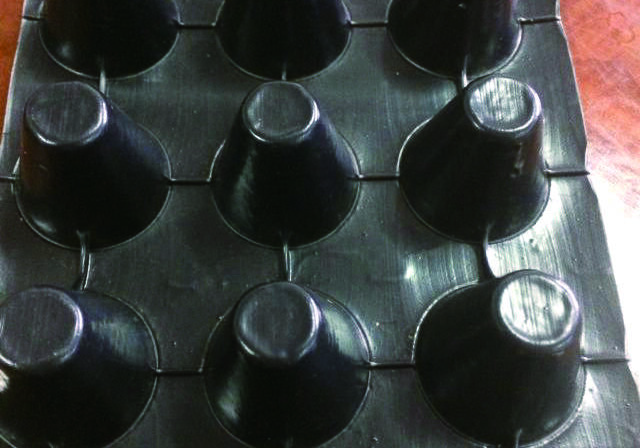

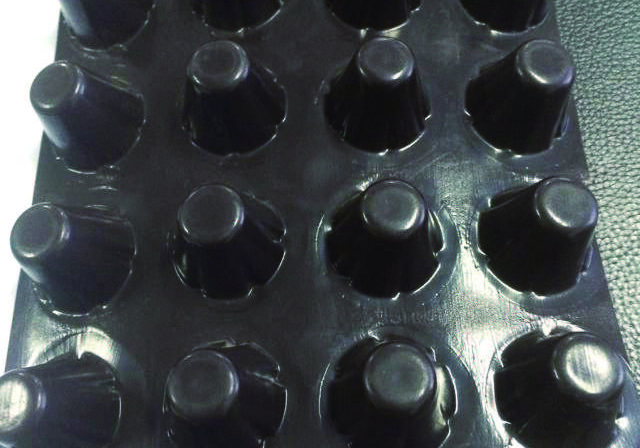

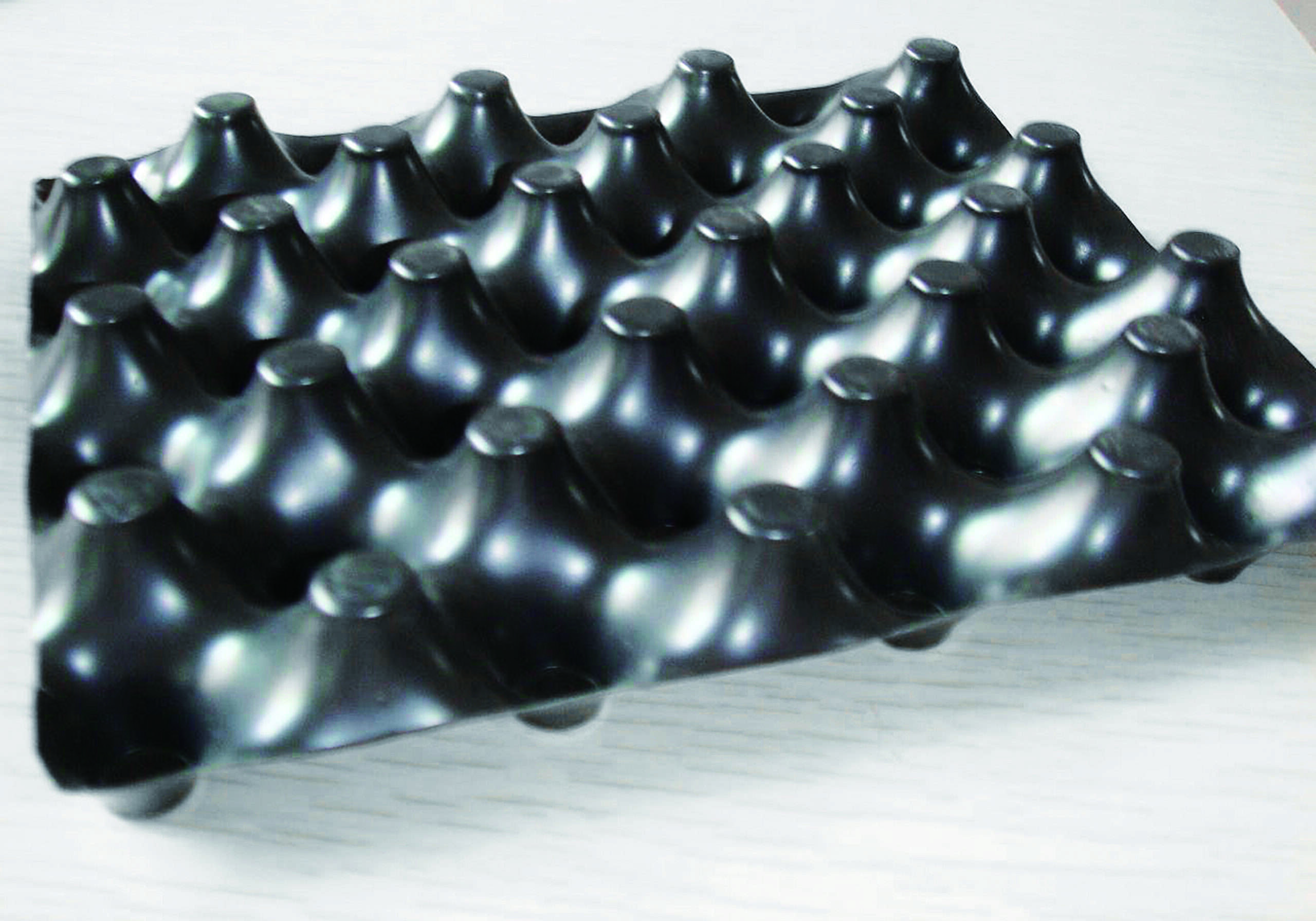

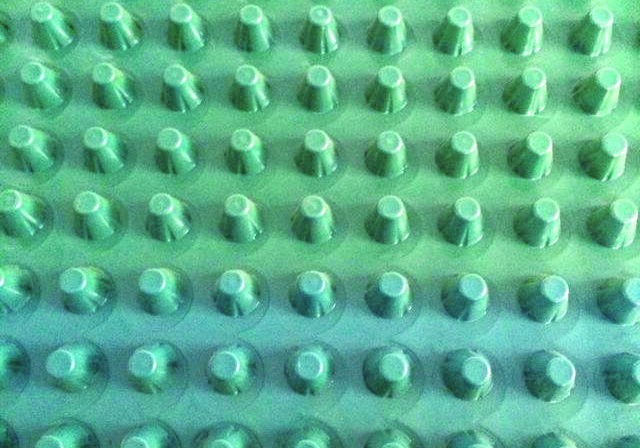

- ●Convex wall thickness of the circular convex on the drainage panel is well-proportioned.
- ●Compression strength is 50% higher than similar product, which solves the problem.
- ●Power saving 30%.
- ●Higher output

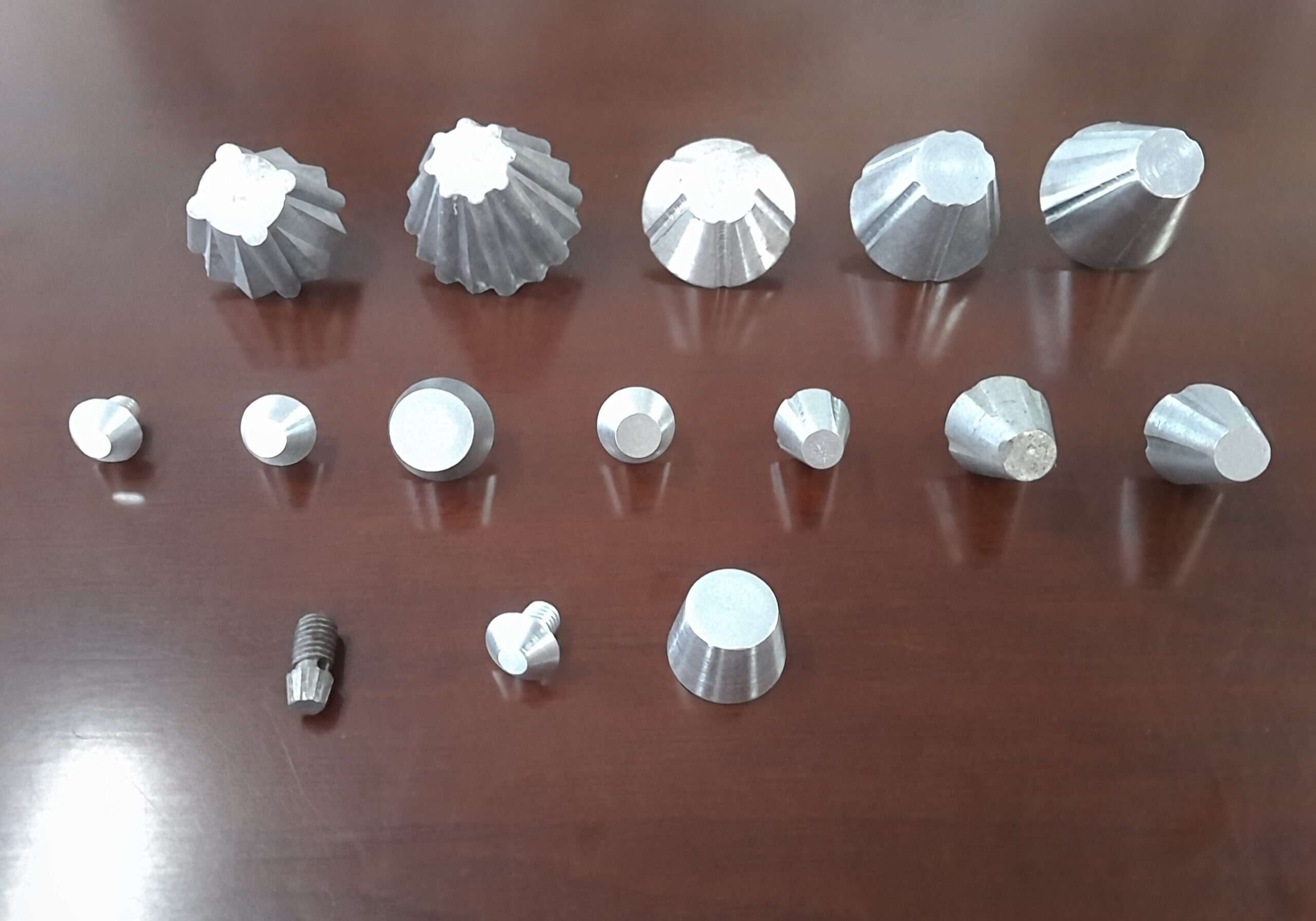

- ●Same forming roller, with changing different dimples, different sizes will be got.
- ●With changing mould, round and square shape.
- ●Drainage board thickness range is 0.5-5.5mm, width up to 5000mm.
- ●Double color can be produced by another model machine.

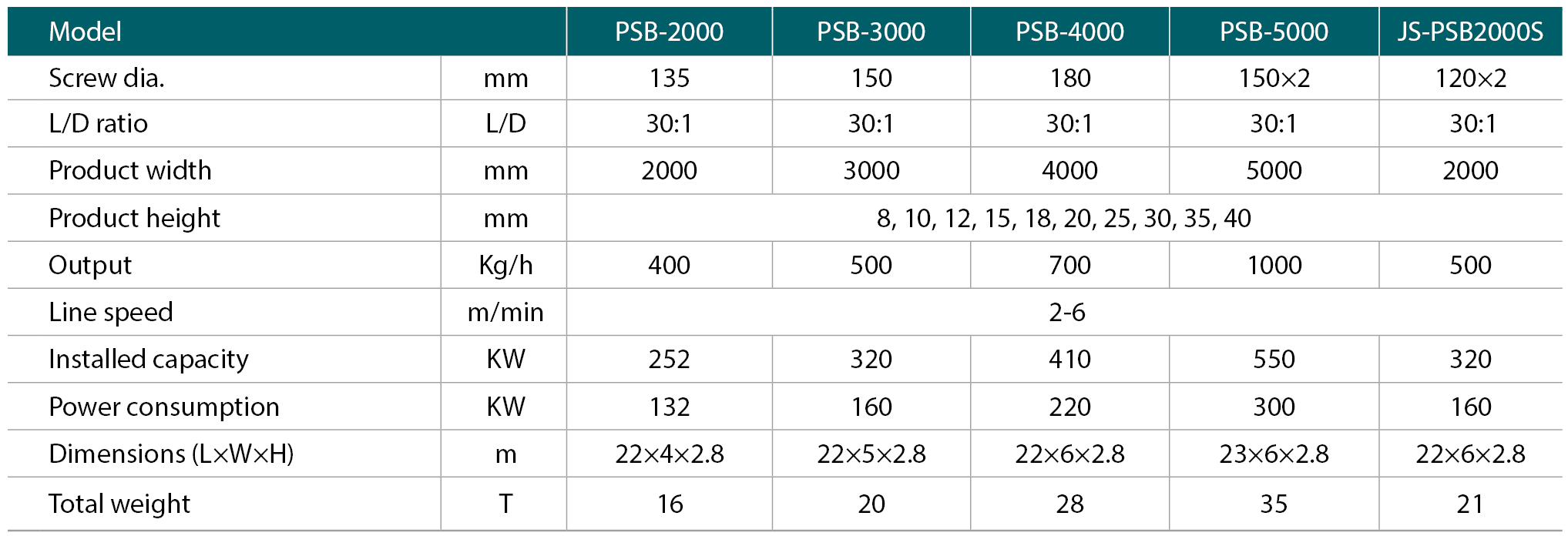

Main Technical Specification
| Model | PSB-2000 | PSB-3000 | PSB-4000 | PSB-5000 | JS-PSB2000S | |
|---|---|---|---|---|---|---|
| Screw dia. | mm | 135 | 150 | 180 | 150×2 | 120×2 |
| L/D ratio | L/D | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
| Product width | mm | 2000 | 3000 | 4000 | 5000 | 2000 |
| Product height | mm | 4, 6, 8, 10, 12, 15, 18, 20, 25, 30, 35, 40, 50, 60 | ||||
| Output | Kg/h | 400 | 500 | 700 | 1000 | 500 |
| Line speed | m/min | 2-6 | ||||
| Installed capacity | KW | 252 | 320 | 410 | 550 | 320 |
| Power consumption | KW | 132 | 160 | 220 | 300 | 160 |
| Dimensions (L×W×H) | m | 22×4×2.8 | 22×5×2.8 | 22×6×2.8 | 23×6×2.8 | 22×6×2.8 |
| Total weight | T | 16 | 20 | 28 | 35 | 21 |
