Plastic Geonet Production Line

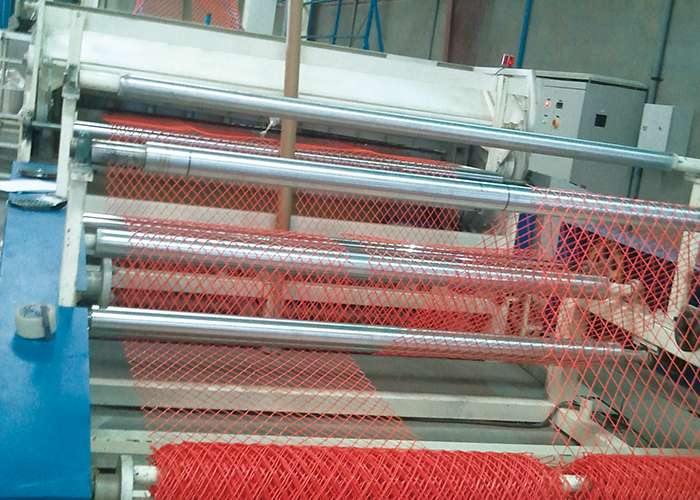

With leading technology, Junsheng geonet production line has advantages of distributing material uniformly and meets the production requirement of several kinds of HDPE or PP.

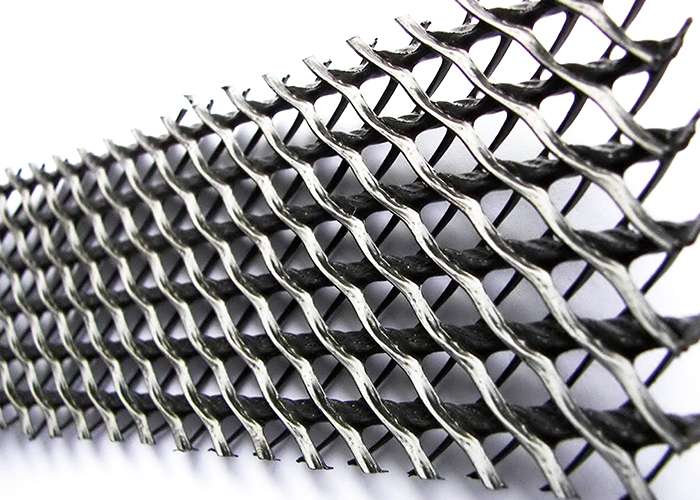

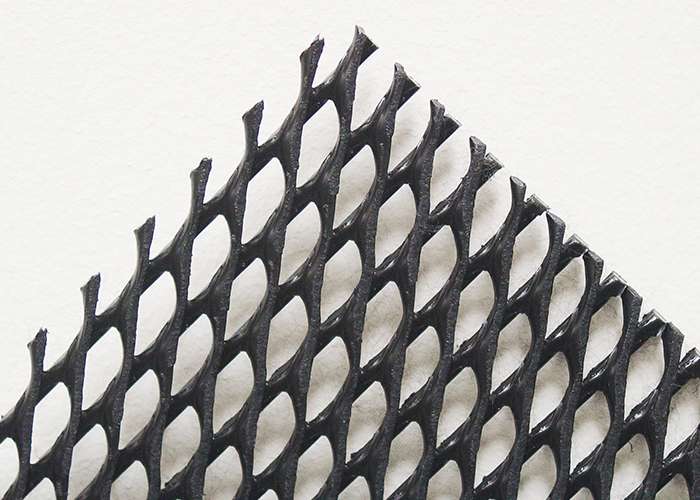

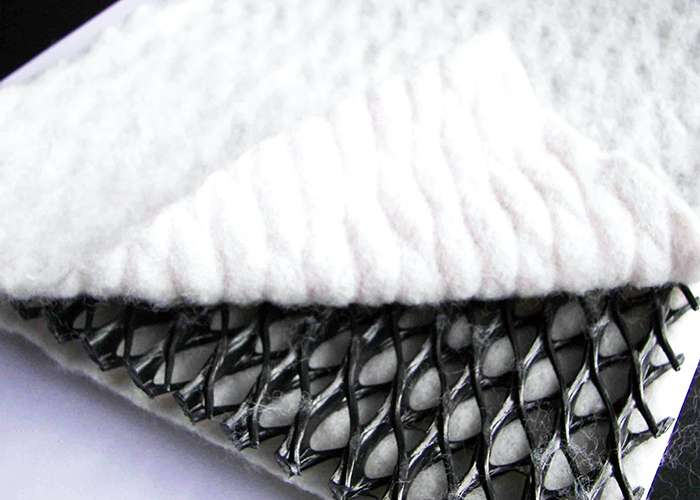

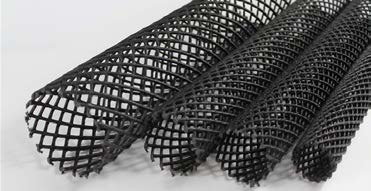

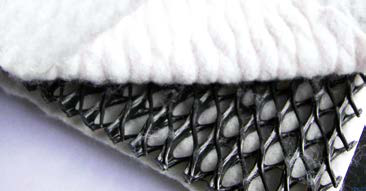

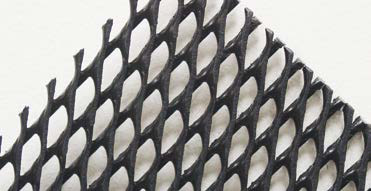

Geonet is mainly used in the field of architecture, irrigation, roadway, farming, sand prevention, and furniture, etc.
Key Features
Product Description
With leading technology, Junsheng geonet production line has advantages of distributing material uniformly and meets the production requirement of several kinds of HDPE or PP.
Geonet is mainly used in the field of architecture, irrigation, roadway, farming, sand prevention, and furniture, etc.

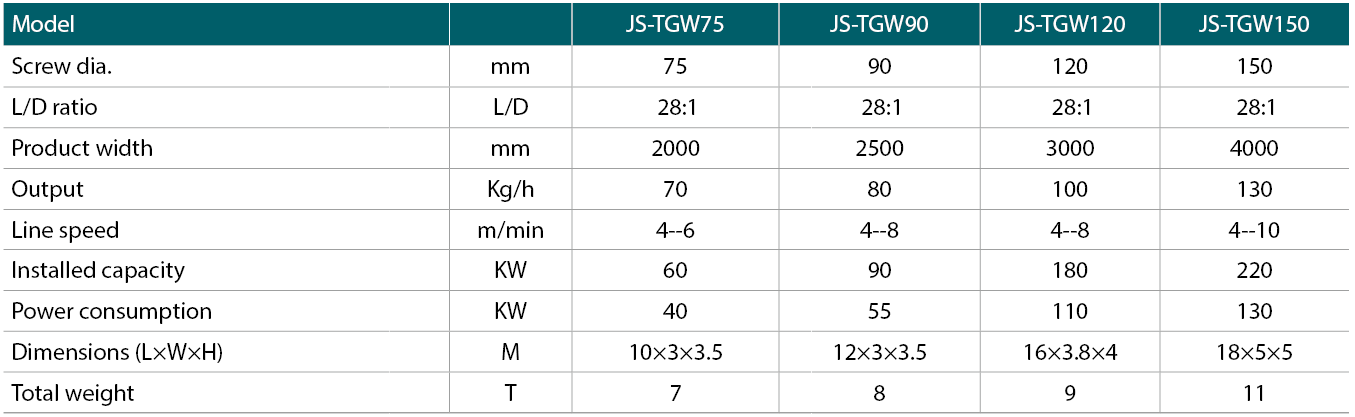

Main Technical Specification
| Model | JS-TGW75 | JS-TGW90 | JS-TGW120 | JS-TGW150 | JS-TGW180 | |
|---|---|---|---|---|---|---|
| Screw dia. | mm | 75 | 90 | 120 | 150 | 180 |
| L/D ratio | L/D | 28:1 | 28:1 | 28:1 | 28:1 | 30:1 |
| Product width | mm | 2000 | 2500 | 3000 | 4000 | 6000 |
| Output | Kg/h | 70 | 80 | 100 | 130 | 160 |
| Line speed | m/min | 2--3 | 3--4 | 4--6 | 4--8 | 4--10 |
| Installed capacity | KW | 60 | 90 | 150 | 180 | 320 |
| Power consumption | KW | 40 | 55 | 100 | 110 | 200 |
| Dimensions (L×W×H) | M | 10×3×3.5 | 12×3×3.5 | 16×3.8×4 | 18×5×5 | 25x8x5 |
| Total weight | T | 7 | 8 | 9 | 11 | 16 |
