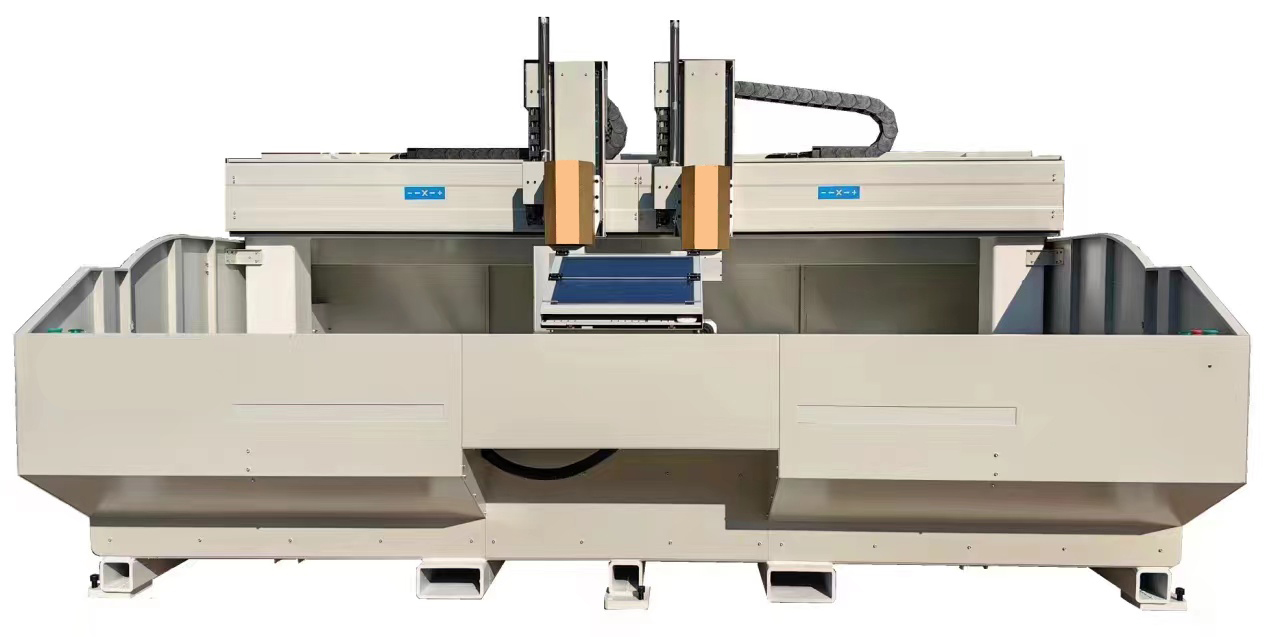

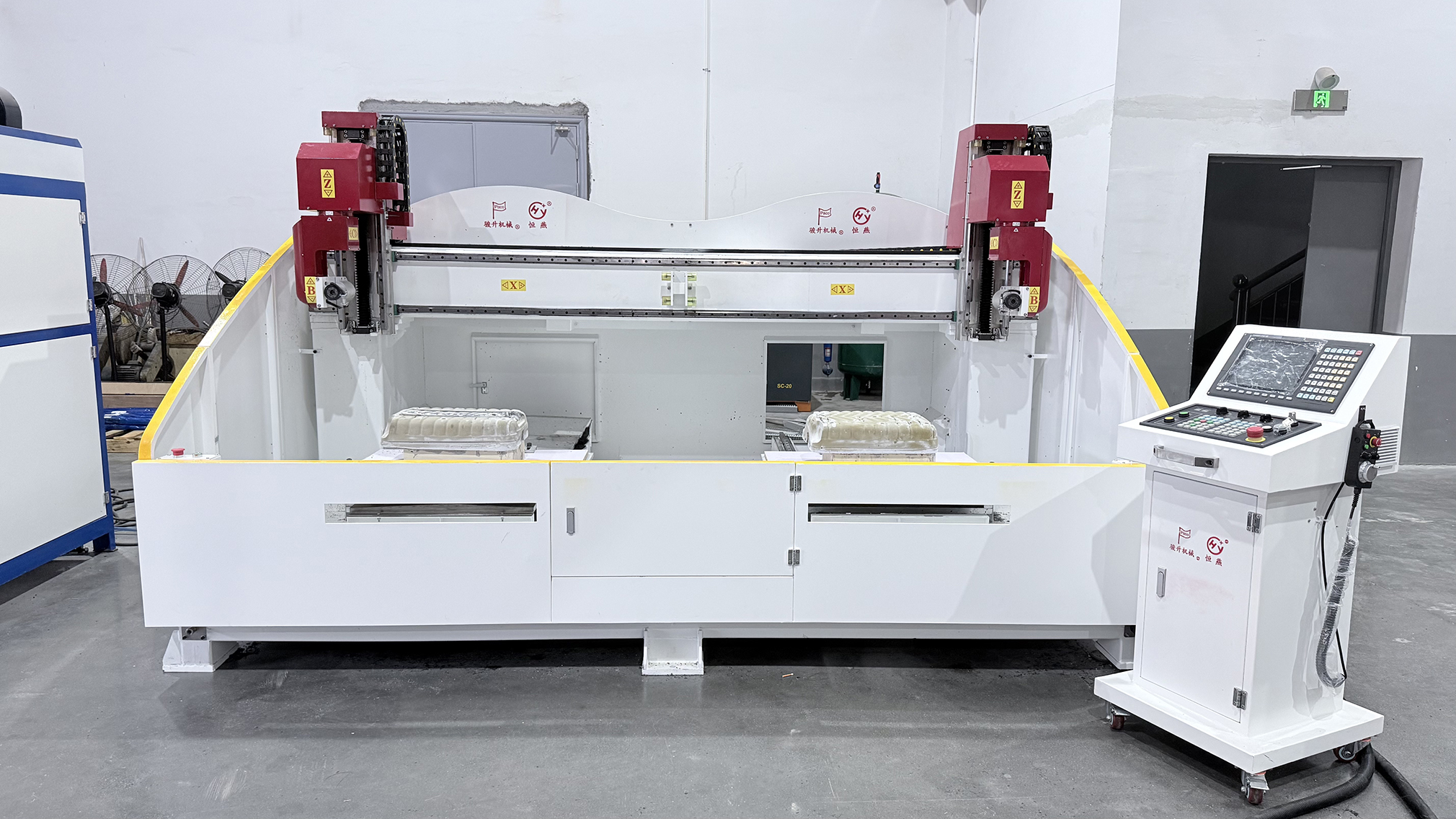

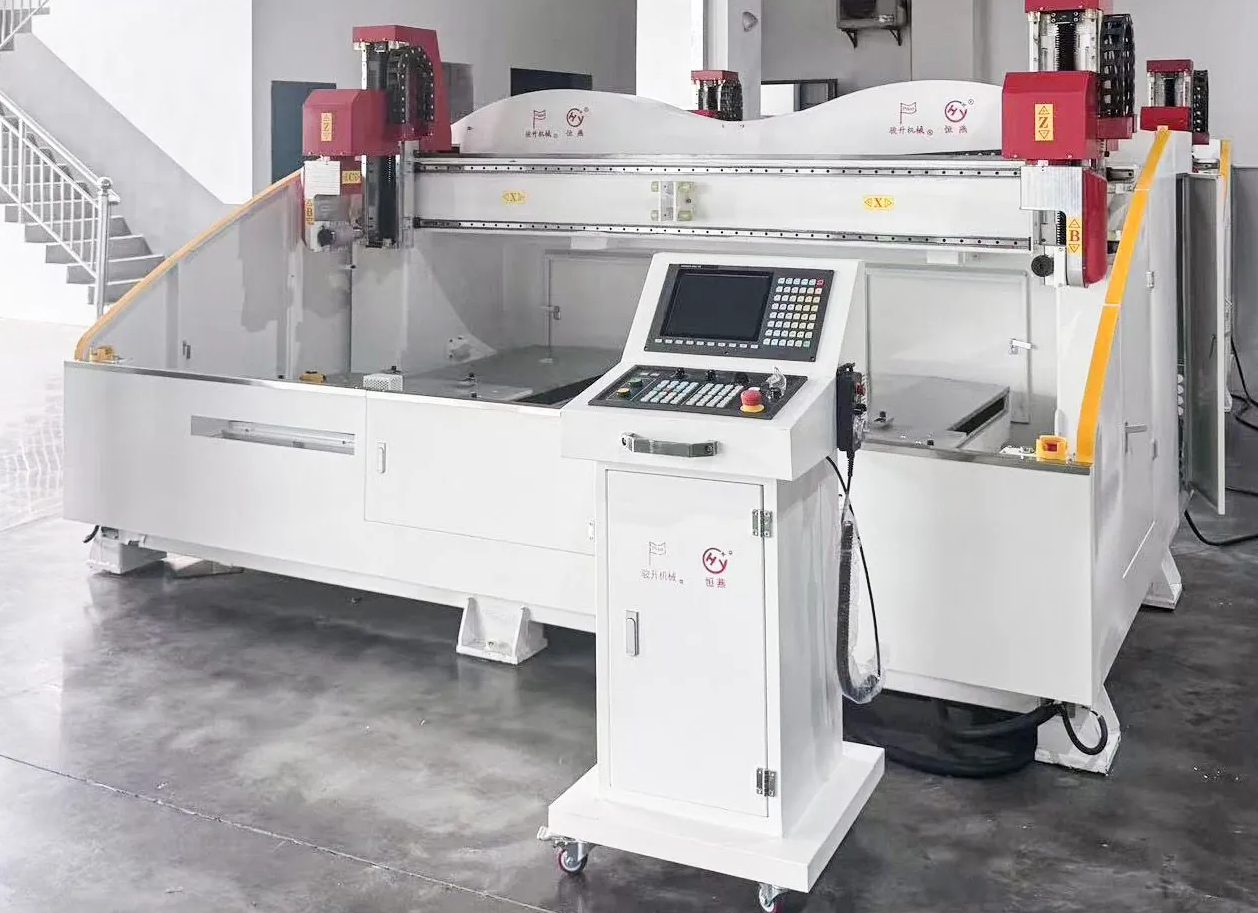

10 Axis Luggage Trimming & Drilling Machine
After the suitcase is blister formed, the edges of the box need to be sawn during the processing, and holes must be drilled on the sides to
install accessories. At the same time, the debris generated by the sawing must be collected and processed.
Product Description
After the suitcase is blister formed, the edges of the box need to be sawn during the processing, and holes must be drilled on the sides to
install accessories. At the same time, the debris generated by the sawing must be collected and processed.

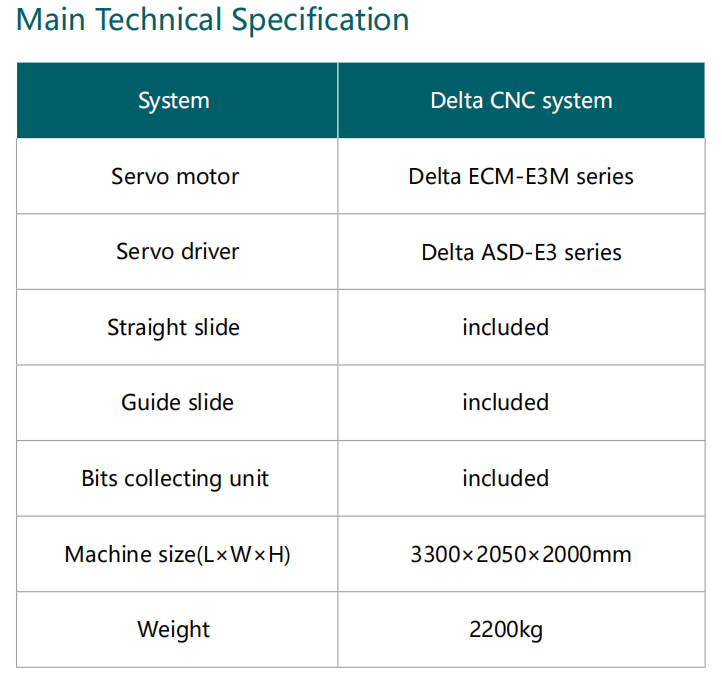

Main Technical Specification
| System | Delta CNC system |
|---|---|
| Servo motor | Delta ECM-E3M series |
| Servo driver | Delta ASD-E3 series |
| Straight slide | included |
| Guide slide | included |
| Bits collecting unit | included |
| Machine size(L×W×H) | 3300×2050×2000mm |
| Weight | 2200kg |
